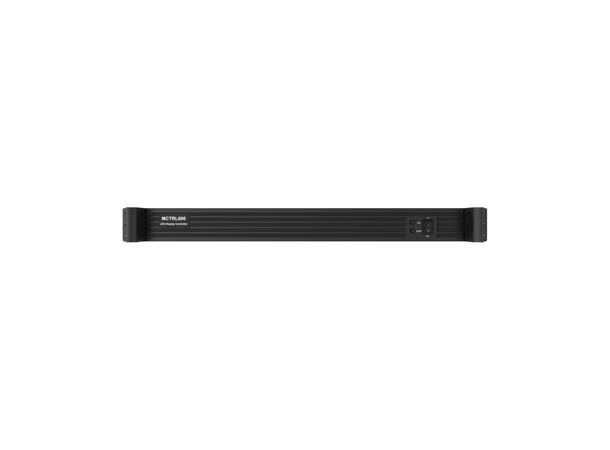

NovaStar MCTRL600 is an LED display controller that supports 1x DVI input, 1x HDMI input, 1x audio input, and 4x Ethernet outputs. A single MCTRL600 supports input resolutions up to 1920×1200@60Hz. It communicates with PC via type-B USB port. Multiple MCTRL600 units can be cascaded via UART port.
Key Features
- 3 types of input connectors
- 1x SL-DVI
- 1x HDMI 1.3
- 1x AUDIO
- 4x Gigabit Ethernet outputs
- 1x light sensor connector
- 1x type-B USB control port
- 2x UART control ports. They are used for device cascading. Up to 20 devices can be cascaded.
- Pixel level brightness and chroma calibration Working with NovaLCT and calibration platform, the controller supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality
