Novastar MCTRL700

Varenr: S02030026
Novastar MCTRL700 Novastar MCTRL700
eks. mva

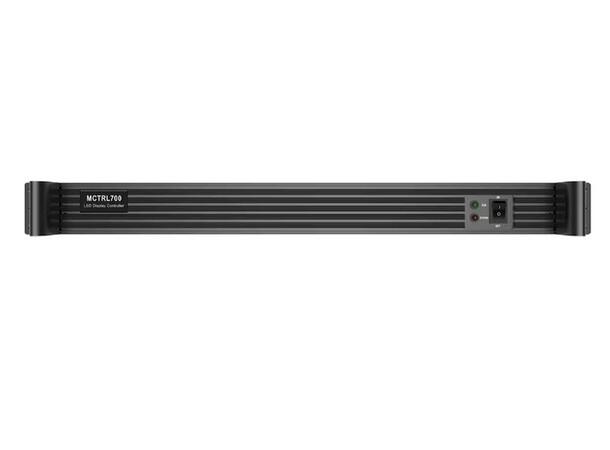

NovaStar MCTRL700 is an LED display controller that supports 1x DVI input, 1x HDMI input, 1x audio input, and 6x Ethernet outputs.

The maximum loading capacity of a single MCTRL700 is 1920×1200@60Hz. It communicates with PC via Type-B USB port. Multiple MCTRL700 units can be cascaded via UART port.

The MCTRL700 can be mainly used in the rental and fixed applications, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.

Key Features

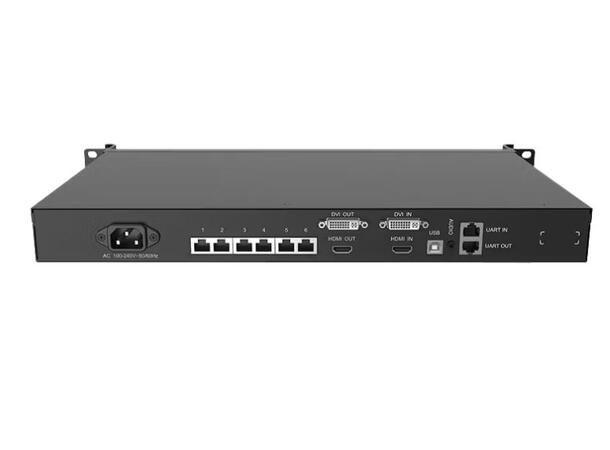

  • 3x Input connectors
    • 1x SL-DVI (IN-OUT)
    • 1x HDMI 1.3 (IN-OUT)
    • 1x AUDIO
  • 6x Gigabit Ethernet outputs
  • 1x Type-B USB control port
  • 2x UART control ports Used for device cascading. Up to 20 devices can be cascaded.
  • Pixel level brightness and chroma calibration Working with NovaLCT and NovaCLB, the controller supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.

Certifications: FCC, CE, IC
