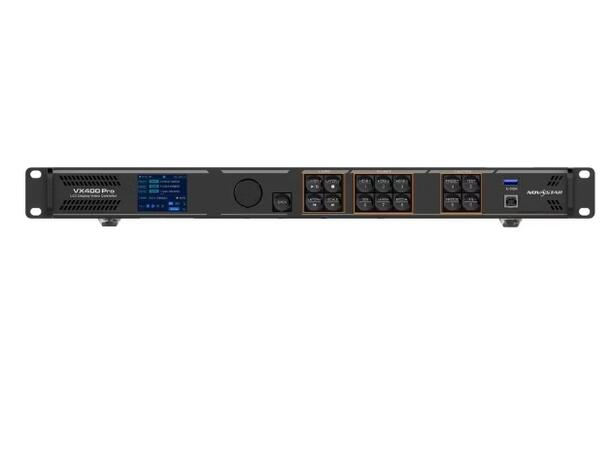

NovaStar VX400 Pro is a powerful all-in-one LED display controller designed for small-to-medium-sized LED screens. With support for 4K×2K@60Hz input resolution, up to 6 layers, and advanced video processing, the VX400 Pro is perfect for controlling ultra-wide and ultra-high LED displays. Featuring 4 Ethernet ports and an HDMI 2.0 input, this controller offers zero-frame latency in ByPass mode, ensuring real-time performance for demanding live applications.Key Features
? Multiple Input Connectors:
- 1x HDMI 2.0 (IN & LOOP)
- 2x HDMI 1.3
- 1x 3G-SDI (IN & LOOP)
- 1x 10G optical fiber port (OPT 1)
- 1x USB 3.0 (supports USB playback)
? Output Connectors:
- 4x Gigabit Ethernet ports (Max. 2.6 million pixels, width: 10,240 pixels, height: 8,192 pixels)
- 2x Fiber outputs (OPT 1 & OPT 2 for copy or backup)
- 1x HDMI 1.3 (monitoring display, 1920×1080@60Hz)
- 1x 3D connector (supports third-party 3D emitter)
? Audio Input and Output:
- HDMI audio input
- Independent 3.5 mm audio input/output
- Adjustable output volume
? Performance:
- Maximum input resolution: 4096×2160@60Hz (HDMI 2.0)
- Supports 8/10/12-bit video inputs and RGB 4:4:4/YCbCr 4:4:4/4:2:2 color formats
- Zero-frame latency with low latency and ByPass mode enabled
- Output synchronization using an internal input source
- Pixel-level brightness and chroma calibration for enhanced image consistency
? Flexible Screen Configuration:
- Up to 6 layers with adjustable size, position, priority, and aspect ratio
- Easy preset saving and loading (up to 256 presets)
- Personalized image scaling: Full screen, Pixel-to-Pixel, Custom
? Control Options:
- Front panel knob, NovaLCT software, Unico web page, and VICP app
? Additional Features:
- USB playback (Plug-and-play with JPEG, PNG, BMP, MP4 formats)
- End-to-end backup between devices, input sources, and Ethernet ports
- Data saving after power failure
