MAXHUB Interactive display 86"

Android 14, EDLA, USB-C 65W

Varenr: E8630
MAXHUB Interactive display 86" Android 14, EDLA, USB-C 65W
eks. mva

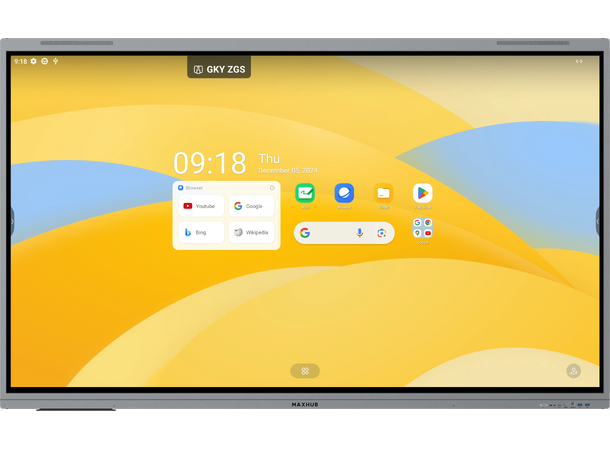

MAXHUB E8630 Interactive Flat Panel

86" 4K Interactive Display with Android 14, Google EDLA Certification, 40-Point Touch, Wi-Fi 6, and SkyWave 2.2 Channel Audio

MAXHUB E8630 Interactive Flat Panel is designed for large classrooms and collaborative learning environments, offering powerful performance and exceptional visual clarity. Its 86-inch 4K IPS display delivers lifelike images with 10-bit color, 98% sRGB coverage, and ?E<1 color accuracy. Equipped with MAXHUB Think&Ink infrared touch technology, it supports 40-point multi-touch with ±1.5 mm accuracy, making writing and collaboration smooth and precise. Powered by an octa-core CPU, Mali G52 GPU, and 6 TOPS NPU with 8GB RAM and 128GB storage, the E8630 runs Android 14 and is Google EDLA certified for seamless Google app integration. The SkyWave 2.2 channel sound system with dual 8W and dual 18W speakers ensures immersive audio. TÜV-certified Low Blue Light and Flicker Free technology provide classroom eye care, while Wi-Fi 6, Bluetooth 5.2, USB-C with 65W PD, and multiple I/O options make it highly versatile. Preloaded with MAXHUB EDU OS V4 and a comprehensive suite of educational tools, the E8630 is an advanced solution for interactive teaching.

Key Features:
  • 86? 4K IPS display with 10-bit color, 98% sRGB, and ?E<1 color accuracy
  • MAXHUB Think&Ink infrared touch with 40-point multi-touch and ±1.5 mm precision
  • Octa-core CPU, Mali G52 GPU, 6 TOPS NPU, 8GB RAM, and 128GB storage
  • Android 14 OS with Google EDLA certification for seamless Google app integration
  • SkyWave 2.2 channel sound system with 2×8W + 2×18W speakers (up to 88 dB SPL)
  • TÜV-certified Low Blue Light and Flicker Free technology for eye protection
  • USB-C with 65W PD for charging, video, audio, touch, and LAN network sharing
  • Wi-Fi 6 and Bluetooth 5.2 for reliable wireless connectivity
  • Comprehensive connectivity: HDMI, DP, VGA, RS232, RJ45, USB 2.0/3.0, TF card, SPDIF
  • Preloaded with MAXHUB EDU OS V4, MAXHUB Connect, Class Pro, Pivot, and education-focused apps
Product Specifications:
  • Manufacturer: MAXHUB
  • Model: E8630
  • Diagonal Size: 86?
  • Resolution: 3840 × 2160 (4K UHD)
  • Aspect Ratio: 16:9
  • Panel Type: IPS
  • Brightness: 400 nits (typ.), 450 nits (max.)
  • Contrast Ratio: 3000:1 (typ.), 50,000:1 (dynamic)
  • Color Depth: 10-bit, 1.07B colors
  • Color Gamut: 98% sRGB
  • Color Accuracy: ?E<1
  • Response Time: 8 ms
  • Viewing Angle: 178° (H/V)
  • Backlight Unit: DLED, life =60,000 hours
  • Refresh Rate: 60 Hz
  • Glass: 3 mm 9H tempered, zero parallax, anti-glare (25% haze)
  • Sensors: Ambient light and color temperature sensors
  • Eye Care: TÜV Low Blue Light, Flicker Free
  • Touch Technology: MAXHUB Think&Ink infrared recognition, 40 points, ±1.5 mm accuracy, <5 ms response
  • Object Recognition: =2 mm, writing height 3 mm
  • OS Compatibility: Windows 7–11, Android, Linux, Mac OS X, Chrome OS
  • Built-in OS: Android 14, Google EDLA certified
  • CPU: Octa-core A72×4 + A53×4, 2.2 GHz, 8 nm process
  • GPU: Mali G52 MC3
  • NPU: 6 TOPS
  • RAM: 8GB
  • Storage: 128GB, expandable via TF card (up to 1TB)
  • Wireless: Wi-Fi 6 (2.4/5GHz, 802.11 a/b/g/n/ac/ax), Bluetooth 5.2
  • Audio: SkyWave 2.2 channel, 2×8W + 2×18W (max 2×12W + 2×25W), SPL 88 dB
  • Dimensions (L×H×D): 1959 × 1179 × 100 mm
  • Shipping Dimensions: 2110 × 1305 × 225 mm
  • Net Weight: 52.45 kg
  • Gross Weight: 69.00 kg
  • VESA Mount: Yes, M4×14 mm, thickness 129 mm (with mount WIB9060H)
  • Power Supply: 100–240V AC, 50/60 Hz, 4.5A
  • Power Consumption: 190W (typ.), <0.5W (standby)
  • Energy Star Certified: Yes
  • Environment: Operating temp 0–40°C, storage temp -20–60°C, humidity 10–90%, altitude =5000m, IP5X dust resistance
  • Included Accessories: Power cord (3 m), HDMI cable (3 m), remote control ×1, stylus ×2, display bracket ×2, wall mount bracket WIB9060H ×1, Wi-Fi module SI07B ×1
