iCable USB4
USB4 Fully Featured Copper Cable, Type C to C
Datasheet V2.2
iCable-U4-CC4005 (0.5m)
iCable-U4-CC4012 (1.2m)
iCable-U4-CC2020 (2m)
iCable-U4-CC2040 (4m)
iCable-U4-CC2050 (5m)
1. INTRODUCTION

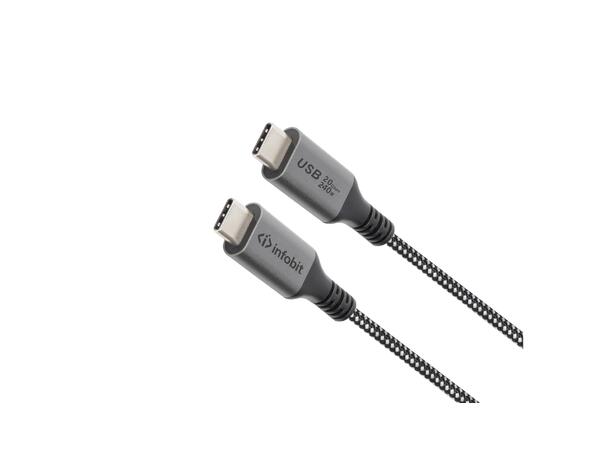

This USB4 cable consists of a USB type-C male on both ends. It is capable of
transferring data at 40Gbps/20Gbps and is typically used to connect USB4
peripherals as well as charge and sync USB Type-C mobile devices. USB4 is
backwards compatible with previous generation USB devices and is also compatible
with Thunderbolt™ 3 ports.
2. FEATURES
• Certified Reliability
USB-IF certified to ensure maximum functionality
• 40Gbps or 20Gbps Data Transfer
Data transfer speed up to 40Gbps or 20Gbps
• Up to 240W Power Delivery
Up to 240W(48V/5A) charging compatibility, it powers Thunderbolt 3 device
without an additional power supply and fast charging for Laptop/Tablet and
fast charging for mobile phone.
• Support 8K@60Hz Display.
Support ultra-HD video resolution, 40Gbps bandwidth allows single 8K@60Hz
outputs or dual 4K@60Hz video.
• Wide Compatibility
Support all Thunderbolt 3 and USB C devices. This USB 4 Cable also
backwards compatible USB 4 & 3.1 & 3.2 gadgets.
• Flexible lengths
40Gbps length: 0.5m, 1.2m
20Gbps length: 2m, 4m, 5m
INFOBIT AV www.infobitav.com info@infobitav.com
• No more guesswork
The iCable-U4-CC2050 is with the charging, data and video labels. No more
guesswork or confusion to users.
3. SPECS
Model iCable- U4-CC40xx iCable- U4-CC20xx
Name USB4 40Gbps Copper Cable USB4 20Gbps Copper Cable
Speed 40Gbps 20Gbps
Color Gray Gray
Connector USB C to C male USB C to C male
Jacket Aluminum Aluminum
Rating USB4 USB4
Compatibility Backwards Compatible Backwards Compatible
Video Up to 8K60Hz Up to 4K60Hz
Power 240W 2m/4m: 240W
5m: 60W/20V3A
E-Marker Yes Yes
Length 0.5m, 1.2m, 2m 2m, 4m, 5m
4. MODELS
MODEL LENGTH SPEC
iCable- U4-CC2020 2m 20Gbps, 4K60Hz, 240W PD
iCable- U4-CC2040 4m 20Gbps, 4K60Hz, 240W PD
iCable- U4-CC2050 5m 20Gbps, 4K60Hz, 60W PD
iCable- U4-CC4005 0.5m 40Gbps, 8K60Hz, 240W PD
iCable- U4-CC4012 1.2m 40Gbps, 8K60Hz, 240W PD
