The USB-C cable range PI6000 to PI6100 in the PureInstall series from PureLink is designed for connecting devices with USB-C or USB-C / USB-A ports. The cables enable data transfer via USB with up to 20Gbps and are compliant with various USB 3.2 SuperSpeed standards. The cables in the range are equipped with USB-C connectors on both sides (PI6000), or with USB-C on one side and USB-A connector on the other (PI6100). They feature a nickel-plated plug housing and gold-plated precision contacts. The USB-C plug is reversible, so there is no need to pay attention to the plug direction. The cables themselves are triple-shielded and equipped with inner conductors made of high-purity copper. All cables are of course also backwards compatible with the older USB 2.0 / 1.1 specifications.
The USB-C only cables (PI6000) are equipped with E-Marker chipset and therefore support USB Power Delivery (USB PD) with up to 5A / 20V / 100W. They are also compatible with the "DisplayPort Alt-Mode" and can therefore be used for the transmission of AV streams in addition to data and power transmission, provided that the source and display device also support the DP Alt-Mode. The transmission is according to DisplayPort 1.4 / 1.2 Alt-Mode standard and supports resolutions up to 8K / UltraHD-2 with 30Hz. When transmitting DisplayPort 1.4 AV signals via Alt-Mode, the cables support a maximum data rate of the USB 2.0 specification for the simultaneous data connection. A full data rate can be achieved if the simultaneous AV resolution matches the DisplayPort 1.2 specification.
USB Alt-Mode also enables the connection of USB docking stations with multiple USB and separate AV ports as well as USB Power Delivery.
All cables with USB-A connector (PI6100) include no E-Marker and do not support DisplayPort Alt-Mode as well as USB Power Delivery. Their maximum charging power is 3A / 5V / 15W.
The cables in this range at a glance:
PI6000 0.50m / 1.00m: passive, USB-C to USB-C, USB 3.2 (Gen 2x2) with 20 Gbps or USB4 (Gen 2x2) with 20Gbps, DP Alt-Mode up to 8K 30Hz, E-Marker, USB Power Delivery up to 5A / 20V / 100W.
PI6000 1.50m / 2.00m: passive, USB-C to USB-C, USB 3.2 (Gen 1x2) with 10 Gbps or USB4 (Gen 2x2) with 20Gbps, DP Alt-Mode up to 8K 30Hz, E-Marker, USB Power Delivery up to 5A / 20V / 100W

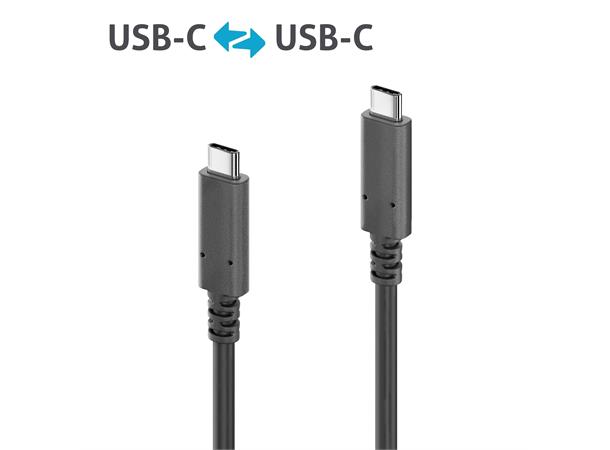

PI6000 3.00m / 5.00m: active with APO™, USB-C to USB-C, USB 3.2 (Gen 2x1), 10 Gbps, DP Alt-Mode up to 8K 30Hz, E-Marker, USB Power Delivery up to 3A / 20V / 60W
PI6100 0.50m / 1.00m: passive, USB-C to USB-A, USB 3.2 (Gen 2x1), 10 Gbps, 3A / 5V / 15W max. output power
PI6100 1.50m / 2.00m: passive, USB-C to USB-A, USB 3.2 (Gen 1x1), 5 Gbps, 3A / 5V / 15W max. output power
PI6100 3.00m / 5.00m: active with APO™, USB-C to USB-A, USB 3.2 (Gen 2x1), 10 Gbps, 3A / 5V / 15W max. output power
