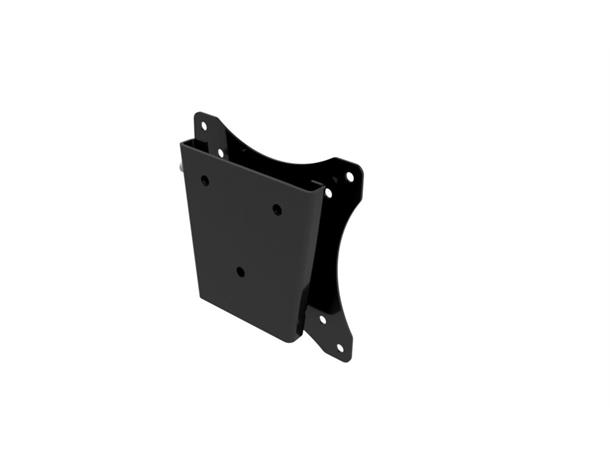

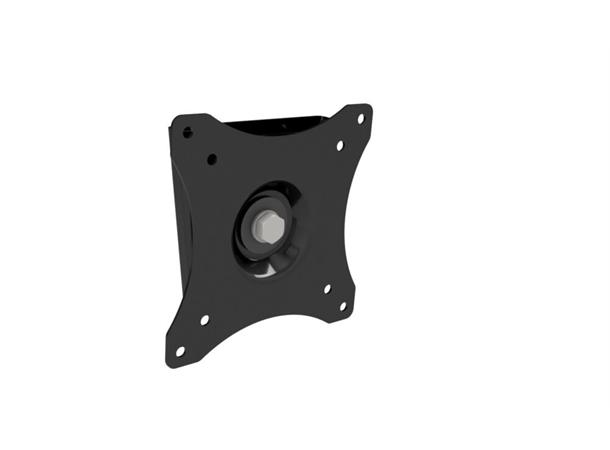

Pivoting Wall Mount for 10-29″ Screens
Typical universal wall mount for small screens. It’s simple design makes it quick and easy to install on walls of various structures. 360 ° rotation and a minimum distance of 25 mm from the wall make it extremely functional. GD03 occupies a small area and has the option of positioning the screen vertically or horizontally. Modern design and high-end finish will meet the most demanding customers’ expectations. GD03 is a mount perfect to screen installation in a hotel room or in a small waiting room.
- 360° screen rotation
- Minimum distance: 25 mm
- Safety feature
- Modern design with high-end finish
- Easy and quick installation by one person
- Lock screw to prevent unauthorised screen removal
| Index |
GD03 |
| Category |
Flat Wall Mounts |
| Product group |
Display Mounts |
| Color |
Black |
| Warranty |
Limited 5-year’s |
| Number of screens |
1 |
| Minimum screen size |
10″ |
| Maximum screen size |
29″ |
| Maximum load |
10 kg |
| VESA Mounting Compatibility |
75×75 up to 100×100 |
| Product dimensions |
W: 115 mm D: 25 mm H: 115 mm (W: 4,53″ D: 0,98″ H: 4,53″) |
| Product weight |
0,5 kg (1 lb) |
| Max. distance from mounting surface |
25 mm (0,98″) |
| Min. distance from mounting surface |
25 mm (0,98″) |
| Max. mounting pattern |
100 mm x 100 mm |
| Min. mounting pattern |
75 mm x 75 mm |
