Edbak Universal Flat Wall Mount

for 65-130" Screens

Varenr: XWB1c-B
Edbak Universal Flat Wall Mount for 65-130" Screens
eks. mva

Universal Flat Wall Mount for 65-130" Screens

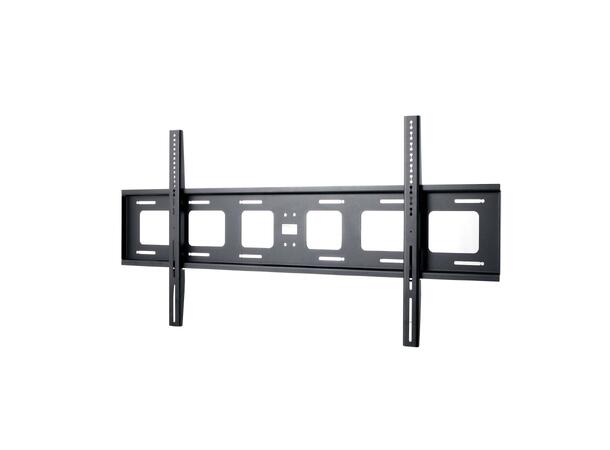

It is designed for practical installation of 65"-130" large screens. XWB1 is a universal fixed wall mount for larger and heavier screens, providing a maximum load capacity of up to 110 kg. The ease of installation makes it very simple to use on all types of wall surfaces. XWB1 is equipped with lock screws that prevent unauthorised removal of the screen. The short large screen distance from the wall, just 42 mm, ensures aesthetic installation. XWB1 is perfect for large conference rooms, lobbies and waiting rooms.


  • Suitable for mounting large screens up to 130"
  • Lateral adjustment of the screen once mounted on the wall plate
  • Suitable for installation on brick, concrete, plaster and wooden walls
  • Minimalist design and functionality
  • Wide range of VESA mounting holes
  • Short screen distance from the wall: only 42 mm
  • Screen protection against falling
  • Screen mounting screws included
  • Simple and quick installation


Index XWB1
Category Flat Wall Mounts
Product group Display Mounts
Color Black
Warranty Limited 5-year’s
Number of screens 1
Minimum screen size 65″
Maximum screen size 130″
Maximum load 110 kg
VESA Mounting Compatibility

100×100 to 1200×600



Product dimensions W: 1260 mm D: 42 mm H: 640 mm (W: 49,61″ D: 1,65″ H: 25,20″)
Product weight 9,3 kg (21 lb)
Max. distance from mounting surface 42 mm (1,65″)
Min. distance from mounting surface 42 mm (1,65″)
Max. mounting pattern 1200 mm x 605 mm
Min. mounting pattern 50 mm x 90 mm
