Edbak Video Wall Pop-Out Mount

Quick Release 42-65",60kg,Landscape

Varenr: VWPOP65-L
Edbak Video Wall Pop-Out Mount Quick Release 42-65",60kg,Landscape Edbak Video Wall Pop-Out Mount Quick Release 42-65",60kg,Landscape Edbak Video Wall Pop-Out Mount Quick Release 42-65",60kg,Landscape Edbak Video Wall Pop-Out Mount Quick Release 42-65",60kg,Landscape Edbak Video Wall Pop-Out Mount Quick Release 42-65",60kg,Landscape Edbak Video Wall Pop-Out Mount Quick Release 42-65",60kg,Landscape Edbak Video Wall Pop-Out Mount Quick Release 42-65",60kg,Landscape Edbak Video Wall Pop-Out Mount Quick Release 42-65",60kg,Landscape Edbak Video Wall Pop-Out Mount Quick Release 42-65",60kg,Landscape
eks. mva

Video Wall Pop-Out Mount with Quick Release 42-65" Landscape

VWPOP65-L is a professional pop-out mount designed to build a video wall of modules in a comprehensive and visually appealing way. Eight positions of screen adjustment, spring-loaded mechanism for adjusting the masses of individual screens or an easy service access system offer great construction possibilities. This mount is the number one choice for users who care about intuitiveness and operating comfort. VWPOP65-L provides optimum comfort during the construction of a modular audio/visual wall.



  • Independent 8 position adjustment allows precise alignment of screens without the use of tools
  • The retractable mechanism provides convenient service access to screens installed in recesses and places difficult to access
  • The retractable mechanism can be secured with a lock screw to prevent the screen from being accidentally extended
  • Modular design allows the building of video walls in various configurations using multiple VWPOP65-L mounts and spacers between the modules
  • Open product design provides full access to cabling
  • Mounting holes and carefully selected spacers eliminate the need for calculations on site

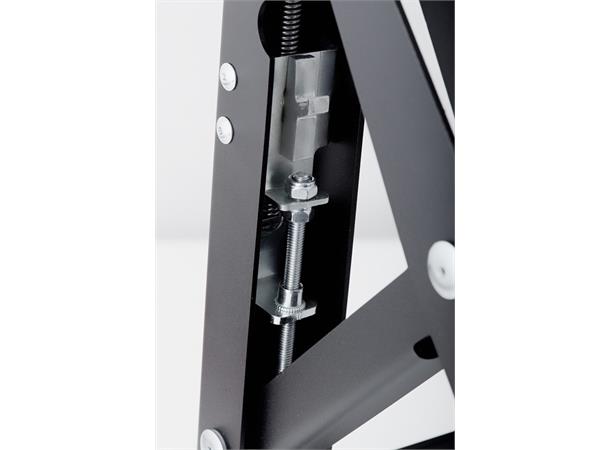

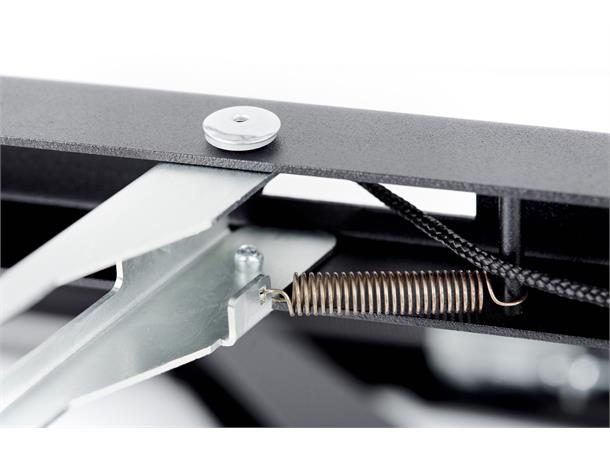

  • Adjustment of the retractable mechanism spring enables proper adjustment for screens of different masses to obtain safe and controlled extension
  • TUV tested



Index VWPOP65-L
Category Video Wall Mounts
Product group Video Wall & Menu Board Mounts
Color Black
Warranty Limited 5-year’s
Number of screens 1
Minimum screen size 42?
Maximum screen size 65?
Maximum load 60 kg
Forward tilting +28°
Screen orientation Landscape
Height adjustment Yes
VESA Mounting Compatibility 100×100 up to 600×400





Product dimensions W: 832 mm D: 85 mm H: 530 mm (W: 32,76? D: 3,35? H: 20,87?)
Product weight 15 kg (33 lb)
Max. distance from mounting surface 270 mm (10,63?)
Min. distance from mounting surface 85 mm (3,35?)
Max. mounting pattern 630 mm x 405 mm
Min. mounting pattern 45 mm x 85 mm
