iSwitch 2000
4K60 JPEG 2000 AV over IP
HDMI 2.0b, HDCP 2.2 compliant, 18Gbps video bandwidth. Input up to 4K60 4:4:4, output up to 4K30 4:4:4
Transmit video, audio, IR, RS-232, CEC, and USB signals over Ethernet
Supports both unicast and multicast functions
Supports point-to-point, video matrix, and video wall functions (video wall up to 9×9)
Screen Group management
JPEG2000 Main Stream and standard H.265 codec Secondary Stream (SS)
Support Secondary Stream VLAN tagging and parameters configuration
Support 1G Ethernet Switch
Support POE
Flexible control through Web GUI/TCP/RS-232/IR and third-party controller
Smart networking design for easy and flexible installation.
Point-to-Point:
iSwitch AV over IP products are a direct replacement for AV Matrix (HDbaseT) solutions.
Leverage IP infrastructure to route AV signals in offices, huddle rooms, conference rooms, or as content contribution (trunking) between locations.
True plug-and-play, no need any IP settings.
One-to-Many:
iSwitch efficiently deliver high-quality, low latency, AV to many displays on a floor, between floors, or across the entire organization.
Many-to-One Switching:
iSwitch lets you take content from multiple encoders and deliver it to one decoder connected to the same managed Ethernet switch.
Many-to-Many Video Wall:
iSwitch include video wall processing that allows encoded AV content to be presented across an array of displays.
Many-to-Many Matrix Switching:
Digital signage systems are usually asymmetrical – a few sources feeding a large number of destinations.
iSwitch simply integrates decoder and network drop for each display.
Preview Source With preview of all signal content.
Support portrait layoutsIt supports 90°, 180°, 270° screen installation.
Datasheet
| HDMI Compliant |
HDMI 2.0b |
| HDCP Compliant |
HDCP 2.2 |
| Video Bandwidth |
18Gbps |
| Video Compression Standard |
JPEG2000 |
| Video Network Bandwidth |
1G |
| Video Resolution |
480i ~1080p@50/60Hz, 4K@24/30Hz, support 4K@50/60Hz input |
| Color Depth |
8/10/12-bit |
| Color Space |
RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| HDMI Audio Formats |
LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master, DTS:X |
| Transmission Distance |
100M CAT5E/6/6A/7 |
| IR Level |
12Vp-p |
| IR Frequency |
Wideband 20K – 60KHZ |
| ESD Protection |
Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |

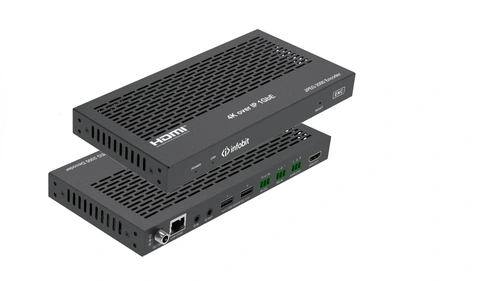

Encoder |
|
Input:
1×HDMI Type A [19-pin male]
1x L/R Audio IN [3.81mm Phoenix connector] |
| 1x IR IN [3.5mm Audio Jack] |
Output:
1×HDMI Type A [19-pin male] |
| 1x L/R Audio OUT [3.81mm Phoenix connector] |
| 1x IR OUT [3.5mm Audio Jack] |
Control:
1x RS-232 [3.81mm Phoenix connector] 1×LAN [RJ45 jack] 1×USB [USB TypeB] |

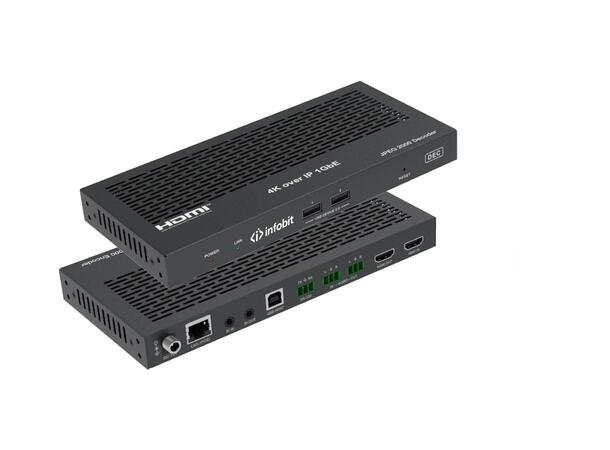

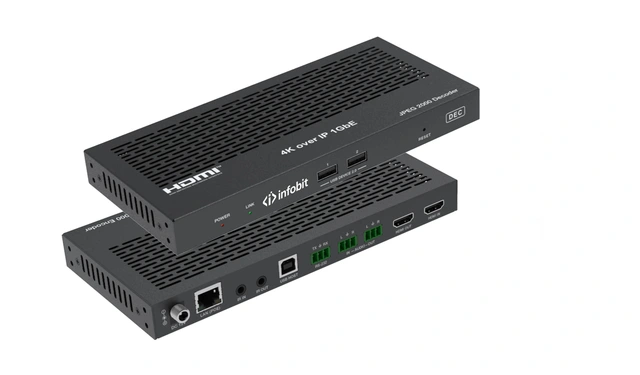

Decoder |
|
Input:
1x IR IN [3.5mm Audio Jack]
1x L/R Audio IN [3.81mm Phoenix connector] |
Output:
1×HDMI Type A [19-pin male] 1x IR OUT [3.5mm Audio Jack] |
| 1x L/R Audio OUT [3.81mm Phoenix connector] |
Control:
1×LAN [RJ45 jack] 2×USB1.1 [USB-A male] |
| 2×USB2.0 [USB-A male] |
| 1x RS-232 [3.81mm Phoenix connector] |
Dimensions |
204mm [W] x 100mm [D] x 21.5mm [H] |
| Weight |
TX:509g, RX:496g |
| Power Supply |
Input: AC100 – 240V 50/60Hz Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption |
Encoder: < 8W, Decoder: < 4W |
| Resolution / Cable Length |
4K60 -16ft / 5M; 4K30 -32ft / 10M; 1080P60 -50ft / 15M |
