Integrated transceiver design, can be flexibly configured as TX or RX through front panel buttons or API commands
HDCP 2.3 and HDBaseT 3.0 compliant
Uncompressed 4K@60Hz 4:4:4 up to 18Gbps video bandwidth, as specified in HDMI 2.0b
4K60/4K30/1080P signal transmission distance up to 328ft/100m via a single CAT6A/7 cable (HDBT Standard Mode)
1080P60 4:4:4 8bit signal transmission distance up to 492ft/150m via a single CAT6A/7 cable (HDBT Long Reach Mode)
HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
Supports all HDMI audio formats pass-through
Supports analog audio embedding and HDMI audio de-embedding
Bi-directional IR, RS-232, and 1G Ethernet signal pass-through
Supports USB 2.0 transmission, Host/Device is configurable
Supports EDID management and CEC signal pass-through
Bi-directional 24V PoC function, with PoC switch
Datasheet

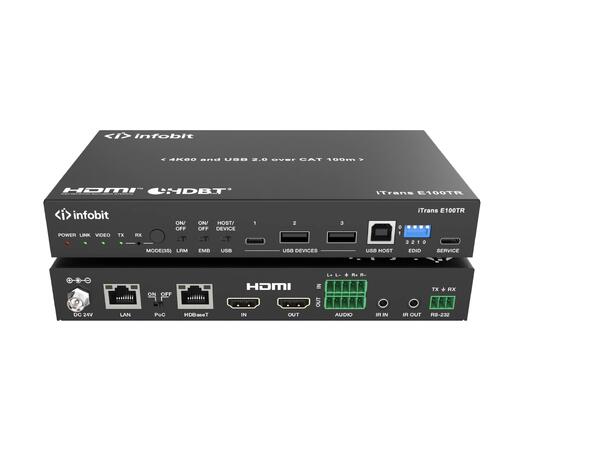

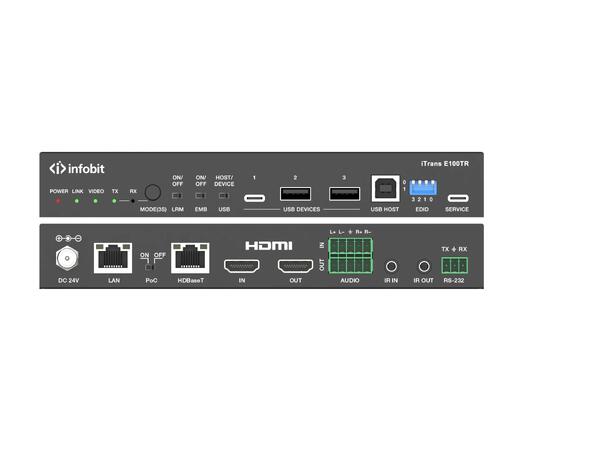

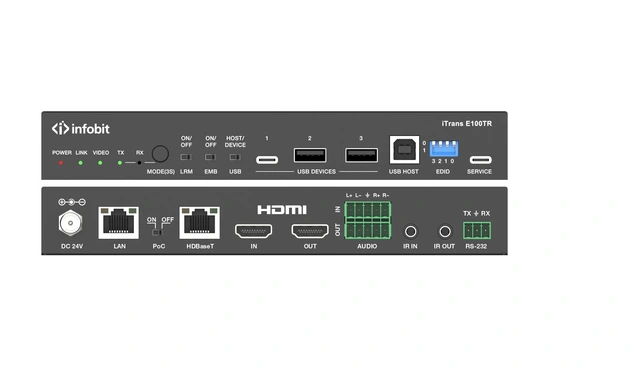

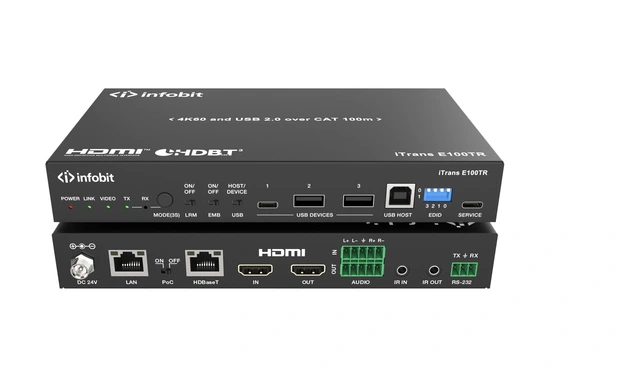

| Model | iTrans E100TR |
| Name | 4K60 over HDBaseT 3.0 Transceiver w/ USB 2.0 |
| HDMI Compliance | HDMI 2.0b, HDCP 2.3 |
| Video Bandwidth | 18Gbps |
| USB Bandwidth | 480Mbps |
| Network Bandwidth | 1000Mbps (LAN) |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| Audio Formats | HDMI/HDBaseT passthrough:
LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio and DTS:X
Analog Audio de-embedding:
LPCM 2CH (sample rate 32~192kHz) |
| Transmission Distance | HDBT Standard Mode (4K60/4K30/1080P): 328ft/100m (CAT6A/7)
HDBT Long Reach Mode (1080P60 8bit): 492ft/150m (CAT6A/7) |
| HDBaseT | HDBaseT 3.0 |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 190mm [W] x 110mm [D] x 28mm [H] |
| Weight | 556g |
| Power Supply | Input: AC 100 – 240V 50/60Hz
Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | <19W (individual box power consumption) |
| Operating Temperature | 32 ~ 104°F / 0 ~ 40°C |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Relative Humidity | 20 ~ 90% RH (no condensation) |
