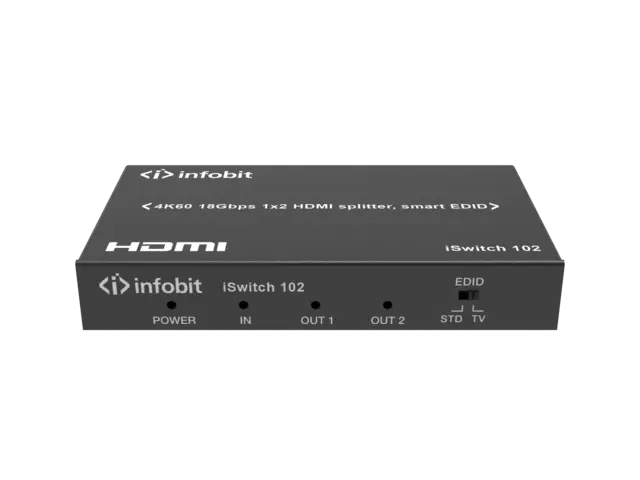

iSwitch 102

1×2 HDMI 18Gbps 4K60 Splitter

HDMI 2.0b, HDCP 2.2 compliant

Up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4

VESA format up to QSXGA@60Hz

Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

Built-in equalizer, retiming, and driver

Smart EDID, STD(1080p) mode and TV(copy OUT1) mode

Compact design for an easy and flexible installation

Datasheet

Model	iSwitch 102
Name	1×2 HDMI 18Gbps Splitter
Video Bandwidth	600MHz/18Gbps

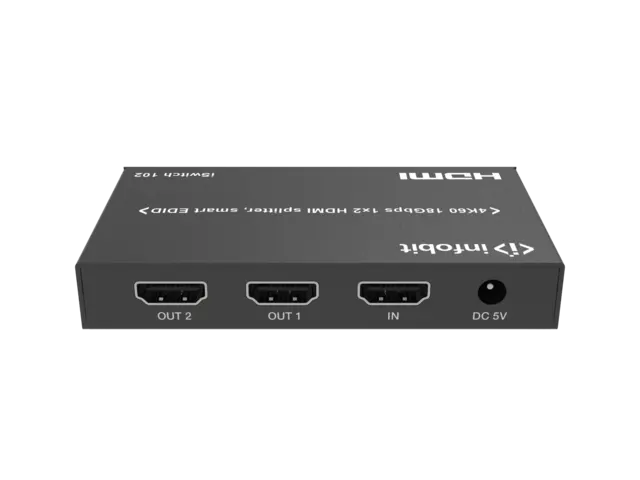

Input Port	1×HDMI Type A (19-pin female)
Output Ports	2×HDMI Type A (19-pin female)
Video Resolution	4K2K 24/25/30/60Hz
ESD Protection	Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge)
Chassis Material	Metal
Color	Black
Power Consumption	2W
Weight	165g
Power Supply	Input: AC100 – 240V 50/60Hz Output: DC 5V/1A
Dimensions	56 mm(W)×100 mm(D)×16mm(H)
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20~90% RH (non-condensing)

Diagram
