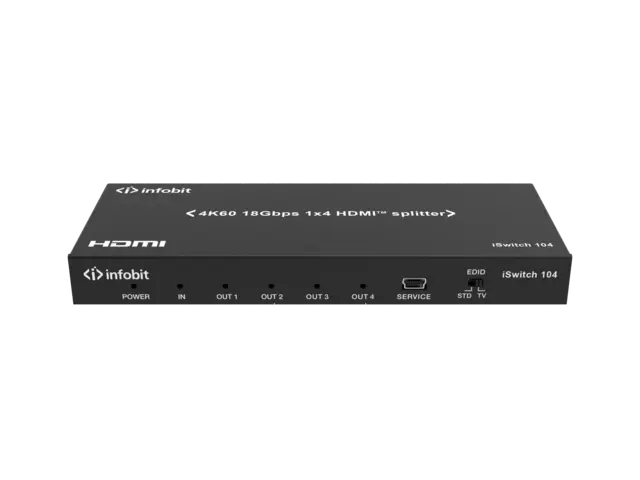

iSwitch 104

1×4 HDMI 18Gbps 4K60 Splitter

HDMI 2.0b, HDCP 2.2 compliant

Supports video format up to 4K2K@60Hz with 8-bit RGB/YCbCr 4:4:4/YCBCR 4:2:2

Support 3D frame sequential video format up to 1080p@60;

Supports 3D frame sequential video format up to 4K2K@30Hz

Supports high-resolution VESA mode video format up to QSXGA@60Hz

Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

Supports smart EDID control

Compact design for an easy and flexible installation

Datasheet

Model	iSwitch 104
Name	1×4 HDMI 18Gbps Splitter
Video Bandwidth	600MHz/18Gbps

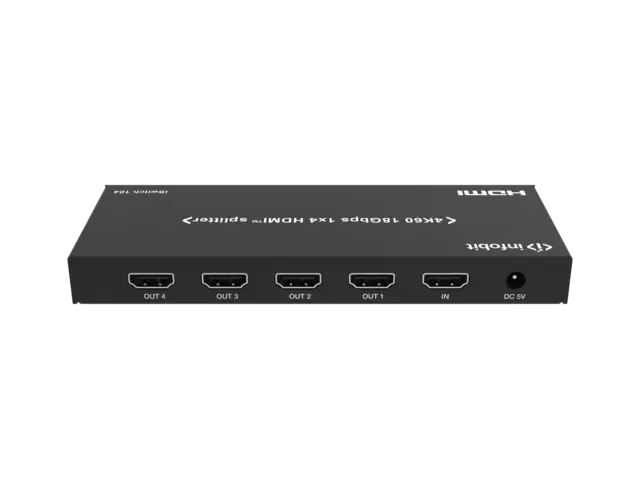

Input Port	1×HDMI Type A (19-pin female)
Output Ports	4×HDMI Type A (19-pin female)
Video Resolution	480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz
ESD Protection	Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge)
Chassis Material	Metal
Color	Black
Power Consumption	2W
Weight	260g
Power Supply	Input: AC100 – 240V 50/60Hz Output: DC 5V/1A
Dimensions	63 mm(W)×163 mm(D)×16mm(H)
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20~90% RH (non-condensing)

Diagram
