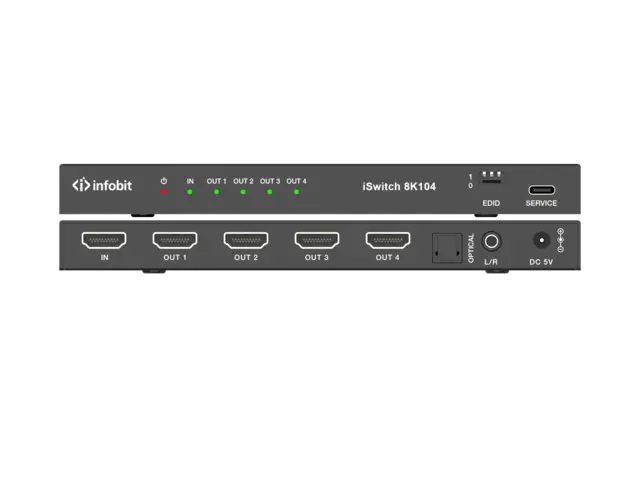

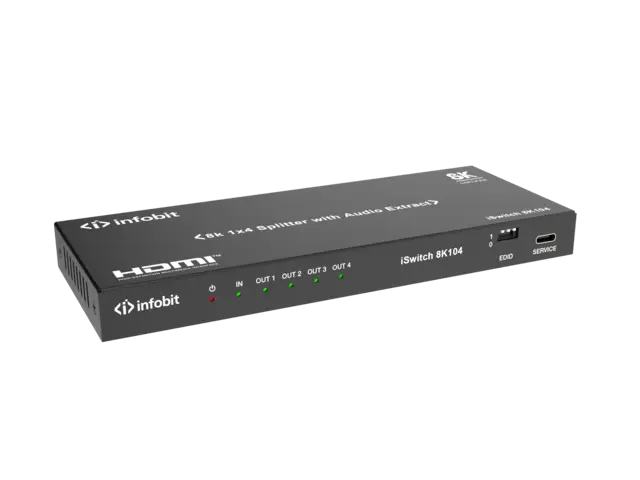

iSwitch 8K104

HDCP 2.3 compliant

Support 48Gbps FRL and 18Gbps TMDS video bandwidth

Support resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1

VRR, FVA, and ALLM are supported

Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through

Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master Audio

Support audio de-embedding function (output through the optical and analog port)

Support resolution auto downscaling on each output

Support auto converting of HDR to SDR on each output

Advanced EDID management

Datasheet

Model	iSwitch 8K104
Name	1×4 HDMI 8K Splitter
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Input Port	1×HDMI Type A (19-pin female)
Output Ports	4×HDMI Type A (19-pin female) 1 × OPTICAL [S/PDIF] 1 × L/R [3.5mm Stereo Mini-jack]
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, 8K@30Hz 4:4:4 12bit
Chassis Material	Metal
Color	Black
Weight	295g
Power Supply	Input: AC100 – 240V 50/60Hz Output: DC 5V/2A
Dimensions	176 mm(W)×68 mm(D)×18mm(H)
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20~90% RH (non-condensing)

Diagram
