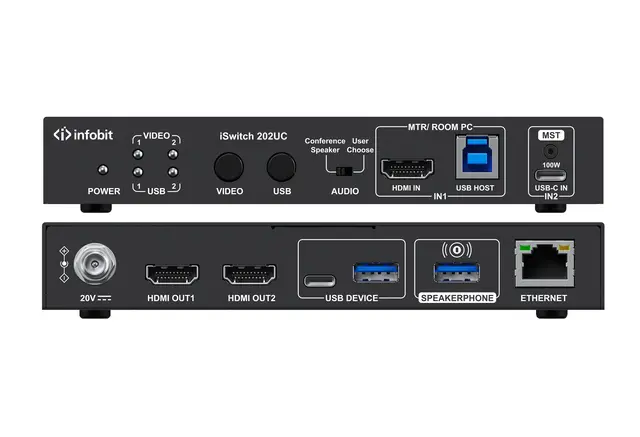

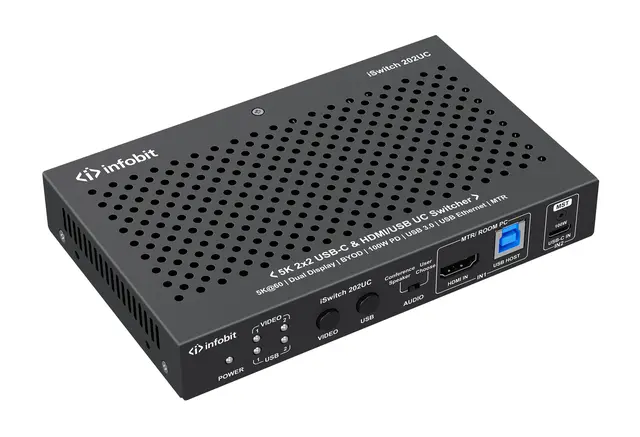

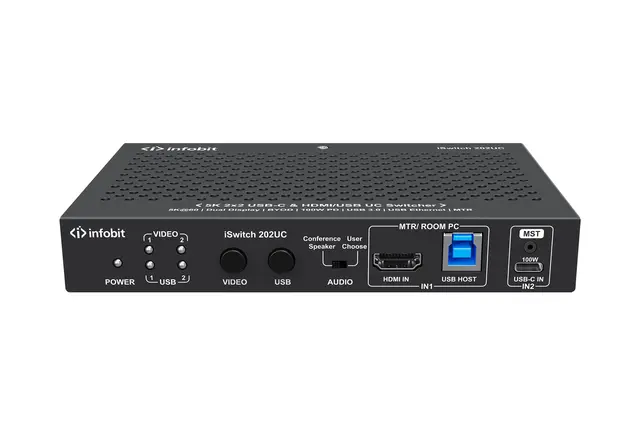

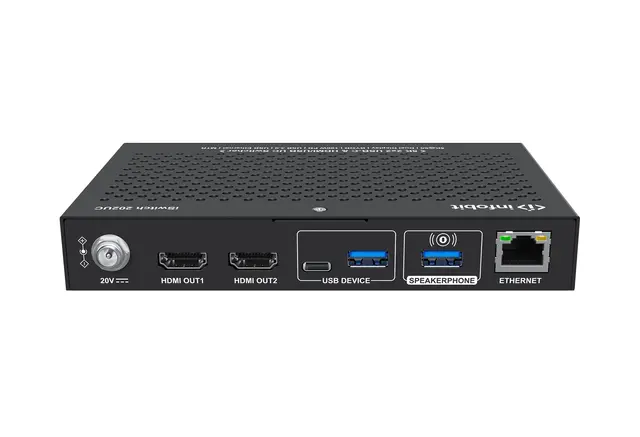

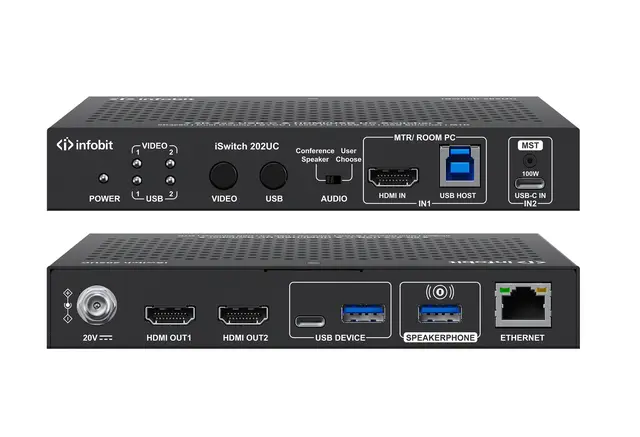

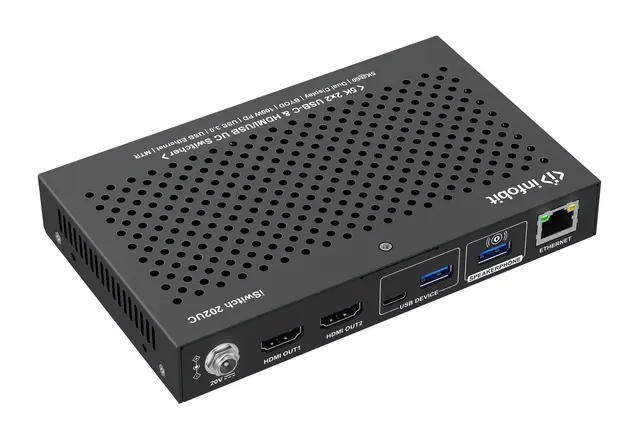

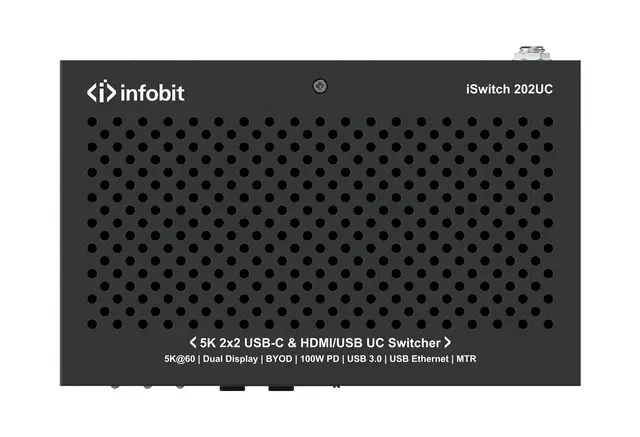

iSwitch 202UC

5K 2×2 USB-C & HDMI/ USB UC Switcher

Supports two-source switching for dual-screen conferencing, with mirrored output of HDMI 2.0b + USB 3.0 Type-B and independent extended dual-screen output of full-featured USB-C with MST.

Supports HDMI 2.0b video input and outputs with resolutions up to 5120×2160@30Hz, 5120×1440@60Hz, and 3840×2160@60Hz, with HDCP 2.3 compliance.

The USB-C input supports DP Alt Mode (MST/SST), USB 3.0 data transmission up to 5Gbps, up to 100W PD charging, and Ethernet Bridge functionality.

Provides three USB 3.0 peripheral ports, including one USB-C port, one USB-A port, and one dedicated USB-A SPEAKERPHONE port.

Supports Ethernet Bridging for the selected USB Host computer (connected to USB HOST or USB-C IN port).

Supports automatic and manual video switching, USB host switching supports Follow mode and Independent mode, and both video and USB host can be switched via front panel buttons and API commands.

Supports automatic CEC control to power displays on/off based on the active status of the selected source.

Supports firmware upgrade through the USB-C IN port.

iSwitch 202UC

5K 2×2 USB-C & HDMI/ USB UC Switcher

Supports two-source switching for dual-screen conferencing, with mirrored output of HDMI 2.0b + USB 3.0 Type-B and independent extended dual-screen output of full-featured USB-C with MST.

Supports HDMI 2.0b video input and outputs with resolutions up to 5120×2160@30Hz, 5120×1440@60Hz, and 3840×2160@60Hz, with HDCP 2.3 compliance.

The USB-C input supports DP Alt Mode (MST/SST), USB 3.0 data transmission up to 5Gbps, up to 100W PD charging, and Ethernet Bridge functionality.

Provides three USB 3.0 peripheral ports, including one USB-C port, one USB-A port, and one dedicated USB-A SPEAKERPHONE port.

Supports Ethernet Bridging for the selected USB Host computer (connected to USB HOST or USB-C IN port).

Supports automatic and manual video switching, USB host switching supports Follow mode and Independent mode, and both video and USB host can be switched via front panel buttons and API commands.

Supports automatic CEC control to power displays on/off based on the active status of the selected source.

Supports firmware upgrade through the USB-C IN port.

Chat Now

Support Ethernet Bridge

The selected USB Host computer (connected to USB-B HOST or USB-C IN port)
can access ethernet.

Full-featured USB-C

The USB-C input supports DP Alt Mode (MST/SST),
USB 3.0 5Gbps data, 100W PD charging,
4K AV audio/ video and Ethernet Bridge.

Speakerphone Priority Button

With 1x dedicated USB-A SPEAKERPHONE port and 1x button,
the user does NOT need to select audio devices in meeting software.

Datasheet

Model	iSwitch 202UC
Name	5K 2×2 USB-C & HDMI/ USB UC Switcher
Technical
Input/Output Video Signal Type	Input: HDMI input supports HDMI 2.0b, up to 5120×2160@30Hz, 5120×1440@60, 3840×2160@60Hz and HDCP 2.3; USB-C input supports USB 3.0, up to 5Gbps data transfer rate, 5K/4K video, 1G Ethernet and 100W charging. Output: HDMI 2.0b, up to 5120×2160@30Hz, 5120×1440@60, 3840×2160@60Hz and HDCP 2.3
Input/Output Resolutions	Input & Output Max. 5120×2160 30Hz 1080i8 (Input only)
USB Device	2 x USB 3.0 type-A ports, supports 5Gbps data transfer rate and 1.5A current output; 1 x USB 3.0 type-C port, supports 5Gbos data transfer rate and 1.5A current output.
Maximum Data Rate	HDMI IN/OUT: 18Gbps USB-C IN: 5Gbps (per lane)
Audio Format	Fully supports audio formats in HDMI 2.0/DP 1.2 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
General
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	10% to 90%, non-condensing
ESD Protection	Human-body Model: ±8kV (Air-gap discharge) / ±4kV (Contact discharge)
Power Supply	DC 20V/6A
Power Consumption (Max)	6.6 W (without charging or USB loaded) 106.6 W (with 100w charging) 29.1 W (with full USB loaded)
Device Dimension	100.2mm x 25mm x 160mm / 3.94” x 0.98” x 6.3” (W x H x D)
Product Weight	0.45kg/0.99lb

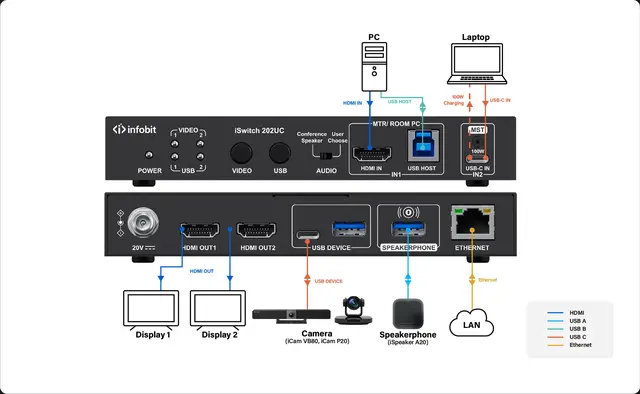

Diagram
