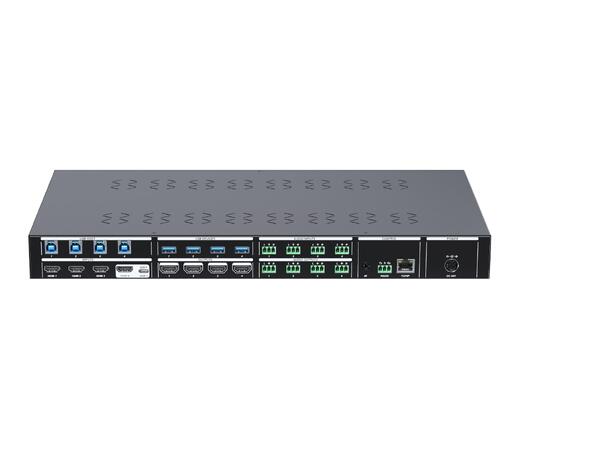

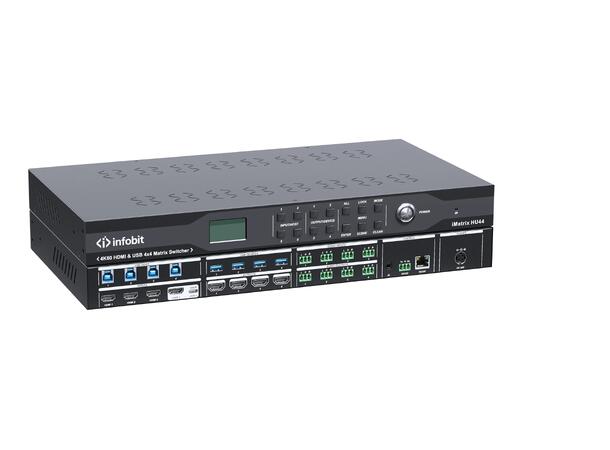

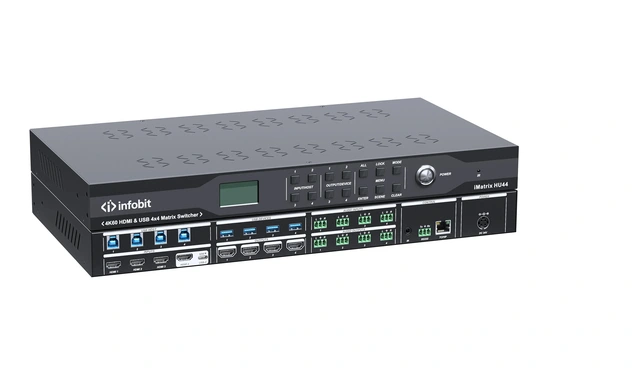

iMatrix HU44

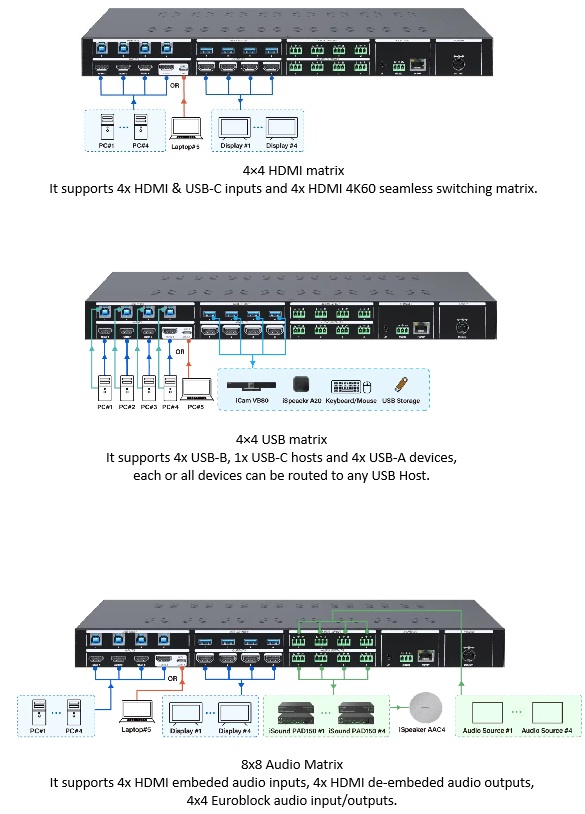

4×4 HDMI matrix
4×4 USB matrix
8×8 audio matrix
HDMI 2.0, 4K@60Hz 4:4:4 & HDCP2.2.
Video seamless switching.
Provides up to 60W PD charging for USB-C.
Switch any USB A device to any 4 of 5 USB hosts as matrix mode.

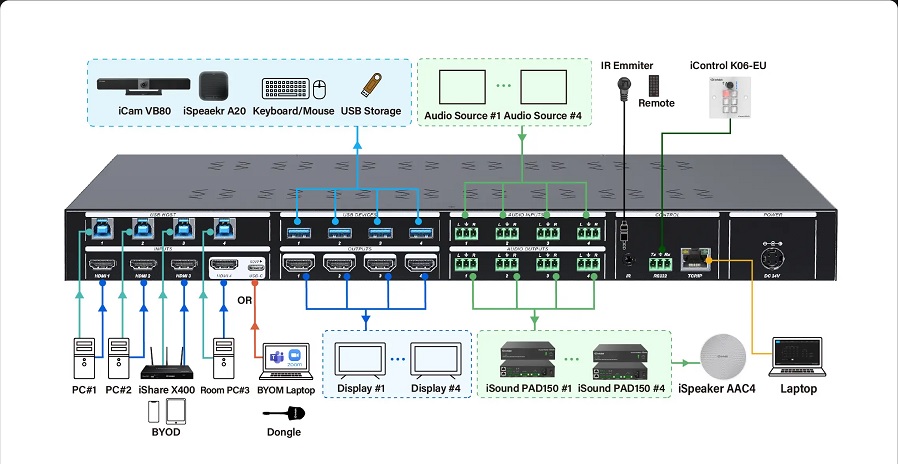

Supports wired BYOM (Bring Your Own Meeting) to switching among Room and BYOD PC.
Be compatible with USB videobar, camera, speaker, microphones with brands INFOBIT, Logitech, Poly, Yealink, Jabra and more
USB-C and HDMI Input 4 auto detection and auto switching.
USB-C 4K60Hz DP1.4 AV Input.
Supports analog audio embedding & de-embedding
Supports separated presets saving or recalling for Video switching, USB switching and Audio switching.
Control via front panel buttons, IR, RS-232 or TCP/IP (WEB-GUI).
Support CEC to control displays ON/OFF
Supports standard VESA resolutions and user-defined resolutions.
Datasheet
| Model |
iMatrix HU44 |
| Name |
4K60 HDMI & USB 4×4 Matrix switcher |
| Input Connector |
4x HDMI Type A+1x USB Type C |
| Input Version |
HDMI 2.0/DP1.4 |
| Input Resolution |
Up to 4K@60Hz 4:4:4 |
| Audio IN/ OUT |
LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ |
| HDCP |
HDCP 2.2 and backward compatibility |
| Output Connector |
4x HDMI Type A |
| Output Version |
HDMI 2.0 |
| Output Resolution |
Up to 4K@60Hz 4:4:4 |
| HDCP |
HDCP 2.2 and backward compatibility |
| Analog Audio |
| Frequency Response |
20Hz-20kHz |
| THD+N |
<0.05% |
| SNR |
>80dB |
| Crosstalk |
<-80dB |
| Digital Audio |
| Frequency Response |
20Hz-20kHz |
| THD+N |
<0.05% |
| SNR |
>90dB |
| Crosstalk |
<-70dB |
| Control |
| RS-232 |
Via the RS-232 commands. |
| IR EYE |
Via the third-party device. |
| IR IN |
Via the remote control. |
| Web-GUI |
Via the TCP/IP. |
| Button |
Via the front panel buttons. |
| General |
| Power Supply |
24V 7.5A |
| Operation Temperature |
-5? ~ +55? |
| Storage Temperature |
-20? ~ +70? |
| Relative Humility |
0% ~ 80% |
| Standby Power Consumption |
1.9W |
| Dimension (W*H*D) |
436.4mm x 44mm x 235mm |
| Net Weight |
583g |
