HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
Support 18Gbps video bandwidth
The maximum extended transmission distance via a single Cat5e/6 cable
394ft / 120 meters for 4K2K signal
492ft / 150 meters for 1080P signal
Support one HDMI loop output on the transmitter
De-embedded audio to analog stereo output on the receiver
With bi-directional IR, RS-232, and CEC pass-through
HDR, HDR10+, Dolby Vision, and HLG functions supported
Support PoC (Power over Cable) function
Compact design for easy and flexible installation
Support CEC and EDID pass-through
Datasheet

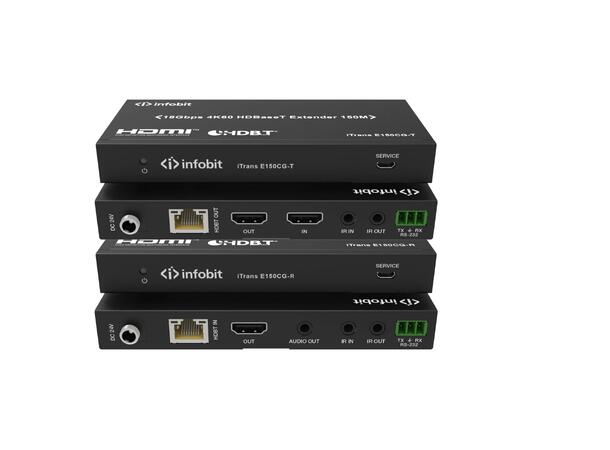

| Model | iTrans E150CG |
| Distance | 1080P/60Hz 150m; 4K/60Hz 120m |
| Must be used in pair | Yes |
| Loopout | Yes |
| De-embeded audio | Yes |
| HDR | Yes |
| HDMI | HDMI 2.0b, 18Gpbs |
| HDCP | HDCP 1.4/ 2.2 |
| CEC & HDCP passthrough | Yes |
| POC (Power Over Cable) | Yes |
| Bi-directional IR and RS232 | Yes |

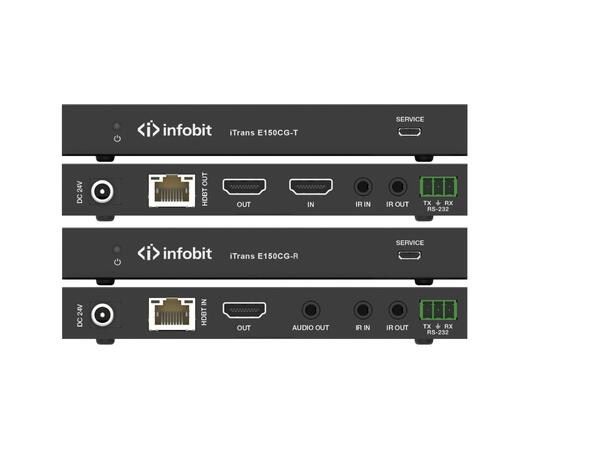

| Transmitter I/O | Inputs: 1x HDMI Type A, 19-pin female;
1x SERVICE (Mini-USB, Update port)
Outputs: 1x HDBaseT OUT, RJ45;
1x HDMI Type A, 19-pin female (loopout);
Control: 1x IR In (3.5mm Stereo Mini-jack);
1x IR Out (3.5mm Stereo Mini-jack);
1x RS-232 (Phoenix jack) |
| Receiver I/O | Inputs: 1x HDBaseT Input, RJ45;
1x SERVICE (Mini-USB, Update port)
Outputs: 1x HDMI Type A, 19-pin female;
1x AUDIO OUT (3.5mm Stereo Mini-jack);
Control: 1x IR IN (3.5mm Stereo Mini-jack);
1x IR Out (3.5mm Stereo Mini-jack)
1x RS-232 (Phoenix jack) |
| Net Dimensions | WHD: 140mm x 18mm x 65mm |
| Net Weight | Tx: 160g, Rx: 155g |
| Power Supply | Input: AC100 – 240V 50/60Hz
Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 9.36W |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (non condensation) |
