Supports HDMI 1.4 & HDCP 2.2
Maximum transmission distance is up to 40m for 4K×2K, and 70m for 1080p
Supports bi-directional IR and RS232 pass-through for long-distance control
Supports bi-directional PoC for simplified wiring
Supports CEC
Features DIP switcher for choosing Control or Update mode
Datasheet
| Models compare | E70C |
| Distance | 1080P/60Hz 70m; 4K/60Hz 40m |
| Must be used in pair | No, Tx/Rx can be used separately |
| Loopout | No |
| De-embeded audio | No |
| HDR | No |
| HDMI | HDMI 1.4, 10.2Gpbs |
| HDCP | HDCP 2.2 |
| POC (Power Over Cable) | Yes |
| Bi-directional IR and RS232 | Yes |

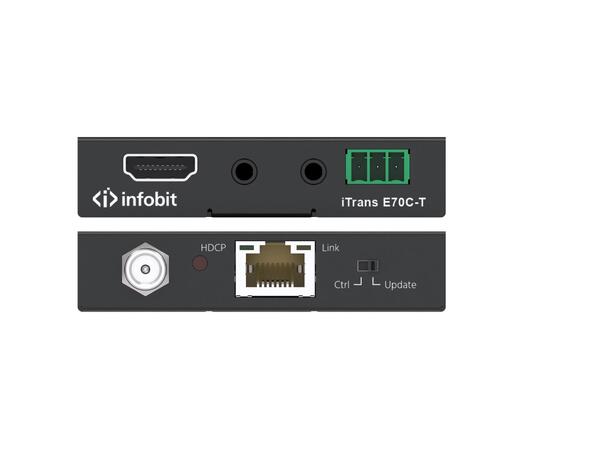

| Transmitter I/O | Input: 1×HDMI Type A, 19-pin
Output: 1×HDBaseT Out, RJ45
Control: 1×IR In (3.5mm Stereo Mini-jack);
1×IR Out (3.5mm Stereo Mini-jack);
1×RS-232 (Phoenix jack) |
| Receiver I/O | Input: 1x HDBaseT Input, RJ45
Output: 1x HDMI Type A, 19-pin
Control: 1×IR In (3.5mm Stereo Mini-jack);
1×IR Out (3.5mm Stereo Mini-jack);
1×RS-232 (Phoenix jack) |
| Net Dimensions | WHD: 120mm x 16mm x 74mm |
| Net Weight | 240g/ Tx or Rx |
| Power Supply | Input: AC100 – 240V 50/60Hz
Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 10W |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (non condensation) |
