HDCP 1.4 and DVI 1.0 compliant
Support video resolution up to 4k2k@30Hz YUV 4:4:4, as specified in HDMI 1.4
The maximum transmission distance via a single CAT6/5E cable is as follows:
CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30
CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
Support copy EDID from the receiver display or looping out the display
Allow for cascading via an additional HDMI loop-out port
Support one-way POC functionality (from transmitter to receiver)
One-way IR signal transmission
Compact design for easy and flexible installation
Datasheet
| Model | iTrans E70N |
| Name | 4K30 Extender 70m |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 10.2Gbps |
| Input TMDS Signal | 3.3 volts |
| Input DDC Signal | 5.0 volts/P-P |
| Audio Support | Up to 7.1CH HD audio |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Video Resolution | Up to 4K@30Hz |

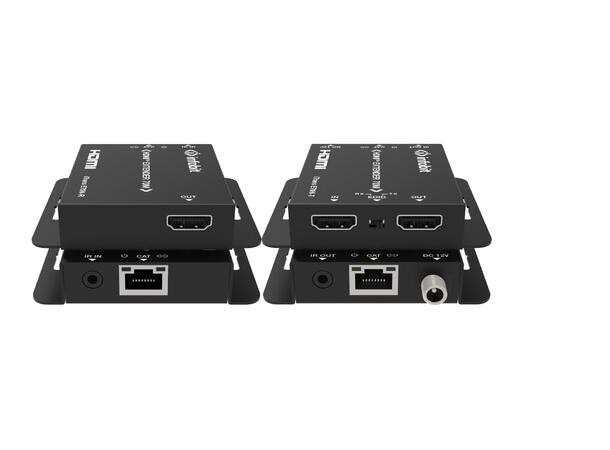

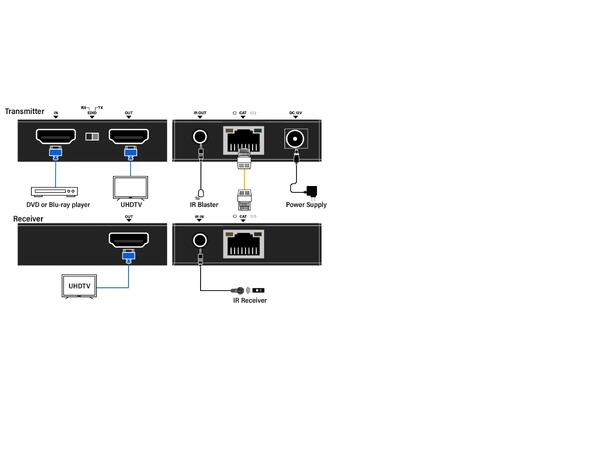

| Transmitter | Input: 1x IN [HDMI Type A, 19-pin female] |
Output:1x OUT [HDMI Type A, 19-pin female]
1x IR OUT [3.5mm Stereo Mini-jack]
1x CAT OUT [RJ45, 8-pin female] |
| Receiver | Input: 1x IR IN [3.5mm Stereo Mini-jack]
1x CAT IN [RJ45, 8-pin female] |
| Output: 1x OUT [HDMI Type A, 19-pin female] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 79.5mm[W] x 69mm[D] x 16.5mm[H] |
| Weight | Transmitter: 132g, Receiver: 130g |
| Power Supply | 12V/1A DC |
| Power Consumption | Transmitter: 1.86W, Receiver: 0.87W |
| Operating Temperature | 32 – 104°F / 0 – 40°C |
| Storage temperature | -4 – 140°F / -20 – 60°C |
| Operating Humidity | 20% – 80% RH (no condensation) |
| Storage Humidity | 10% – 90% RH (no condensation) |
