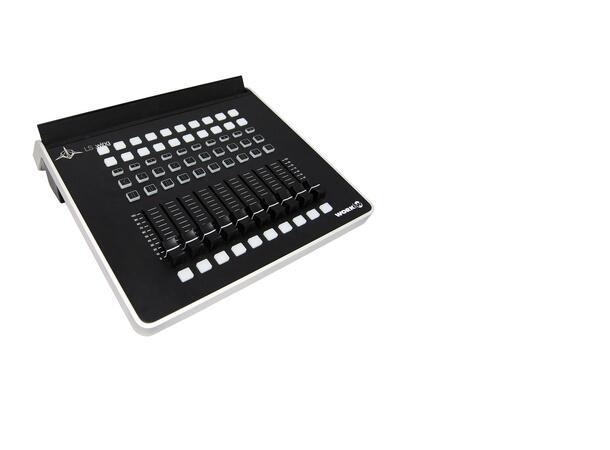

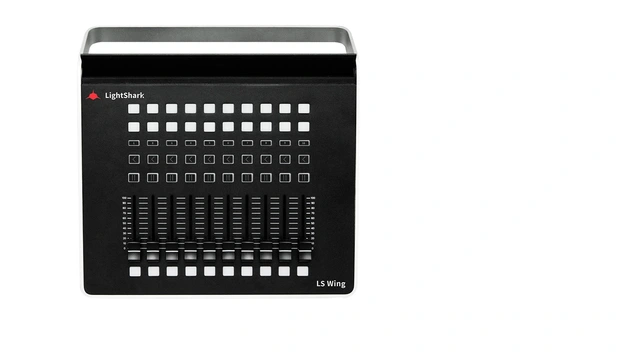

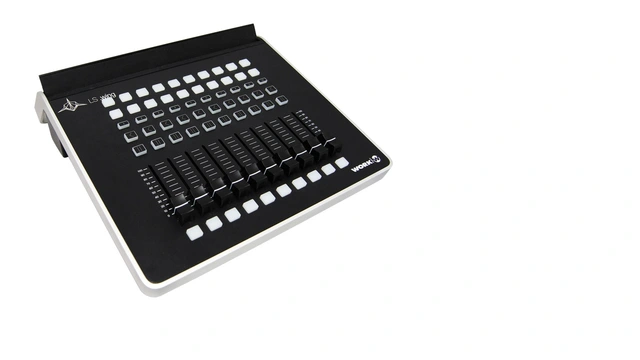

LS .wing  is  an  innovative  hardware  which  offers  several  products  in  one:  a  Wing  for  LS .1 / LS .Core,  an  OSC/UDP  hardware  controller,  a  MIDI  controller  and  a  user  programmable remote controller.

LS .wing can send/receive OSC commands through ethernet from any software or hardware compatible  with  this  protocol.  In  addition,  it  can  send/receive  UDP  messages,  making  it compatible with any AV device or software on the market.

LS .wing offers outstanding versatility to the lighting control market, as it can be configured to be compatible with other lighting systems. Developed as a 4 in 1 product, LS .wing can be a straightforward fader wing, an OSC hardware controller or a standalone MIDI console for any device that  accepts  MIDI  control  via  USB. A  total  of  four  USB  ports  are  provided,  including  a  USB-B  port, making it easy to connect to MIDI devices and charge smartphones and tablets.

In all four modes, LS .wing has a built-in ArtNet/sACN to DMX converter node offering two Direct DMX universes. the  LS .1  and  LS .Core  ?  already  offer  two Direct  DMX  universes  via  an  XLR  connector,  so  by  adding  LS .wing  it  is  very  easy  to  double  the number of Direct DMX universes available to each console. Its 4 in 1 design makes it easily the most versatile and functional controller on the market. In addition, lighting professionals working in theatres and on live shows can have complete control of more than one device at a time just by using different pages in the same unit.

Main information

MIDI, OSC, UDP, DMX.

2-universe ArtNet/sACN node.

10 playbacks + 20 exec.

Buttons

20 Playback, 10 Flash, 20 Playback, 10 Flash, fully configurable Faders

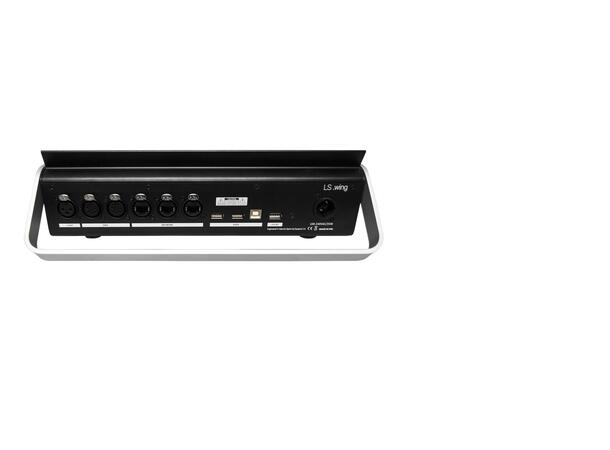

1 x Lamp port (XLR-3 5V); 2 x DMX (XLR-5); 3 x LAN (EtherCon®); 2 x USB-A (Data) + 1 x USB-A (only power 5V); 1 x USB-B; 1 x TrueOne® mains

Configuration

WEB server via LAN connection

Connections:

1 x Lamp port (XLR-3 5V);

2 x DMX (XLR-5);

3 x LAN (EtherCon®); DMX, ArtNET, sACN Node with outputs for 2 universes

2 x USB-A (Data)

1 x USB-A (only power 5V);

1 x USB-B; midi

1 x TrueOne® mains

Power supply

90-230V 50/60Hz TrueOne‚® connector

Dimensions

325 x 100 x 330 mm / 325 x 100 x 330 mm

Weight

2,7 Kg
