iSpeaker DAP10

Power amplifier module power (8O): 300W

Power amplifier module power (4O): 600W

THD+N (10% of rated power): <0. 6%

IMD-SMPTE (10% of rated power): 0. 9%

CROSSTALK:>65dB

Frequency response (Hz): 93dB

Signal-to-noise ratio (A): >93dB

Power input AC: 220V 50/60Hz

Operating temperature: (-15°C~+40°C)

Datasheet

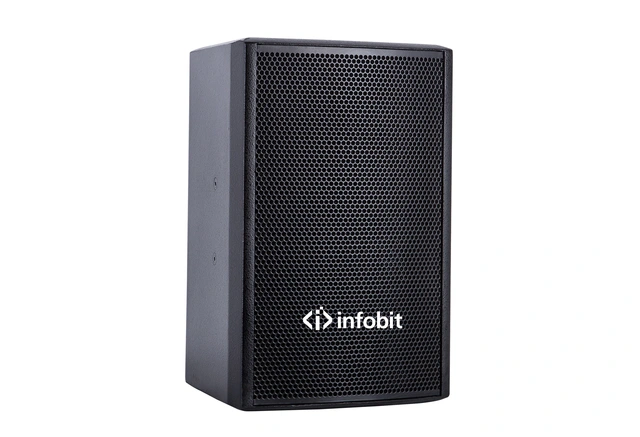

Model	iSpeaker DAP10
Name	Dante Active full-range speakers, 10”
Unit configuration	10?(250 mm) ferrite bass, 1.5?(34 mm) ferrite treble drive
Frequency response (±3dB)	50Hz-20kHz
Rated power	120W
Sensitivity (1W/1m)	90dB
Maximum noise pressure level (SPL)	118dB
Standard impedance	8O
Covering Angle (H x V)	80°x 80°

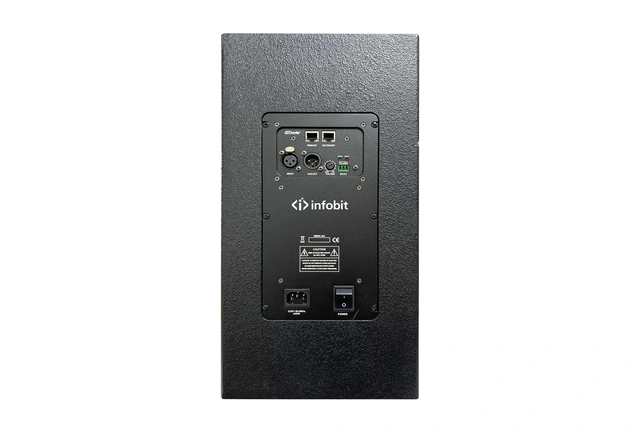

Dante Digital Network interface	2 x RJ45 interface
Analog interface	1 x XLR balanced input, 1 x XLR balanced output
Active power amplifier module	200W
Volume knob control	Yes
Central control interface	RS232
Lifting accessories	U-shaped rack
Size (W x H x D)	308 x 486 x 290 mm
Net weight (kg)	12.2kg
