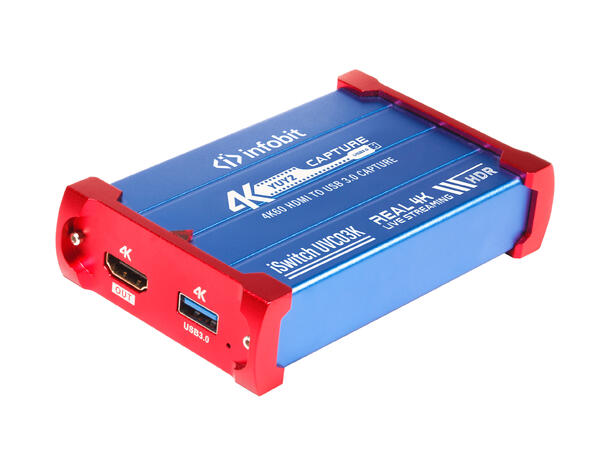

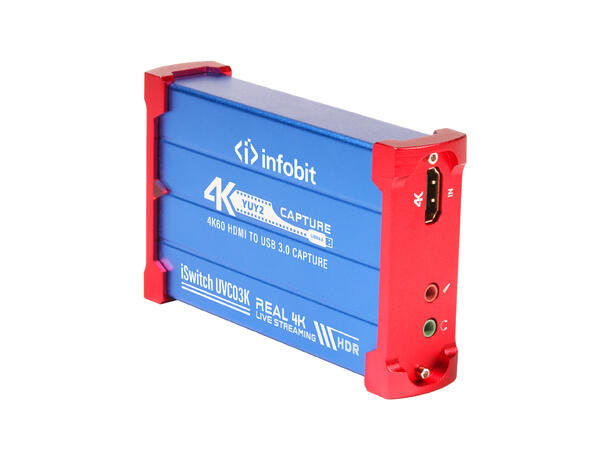

USB 3.0 4K Ultra HD Video Capture
One HDMI Input, one HDMI Loop Output. Monitoring and recording.
Use USB 3.0 to record full HD images at high speed
Support most acquisition software, such as VLC, OBS, etc
No need to install the driver, plug, and play.
Support record NV12, YUY2, XRGB/RGB32 video formats.
Support HDMI 4K/60hz resolution input.
Support Capturing 4K/30Hz resolution.
High-quality aluminum alloy material
Support 3.5mm/TRS microphone input
Support 3.5mm/TRS headphone output
Diagram
Datasheet
| Model | iSwitch UVC03K |
| Name | USB 3.0 4K Ultra HD Video Capture Card |
| USB Bandwidth | USB 3.0 300-350MB/s, USB 2.0 40MB/s |
| Input | HDMI 1x |
| HDMI Resolution | 480i, 480p, 576p, 720p50, 720p60, 1080i50, 1080p60, 1080p24/25/30/50/60, 4K/60 |
| Frame Rate | 25/29.97/30/50/59.94/60fps |
| Capture audio and video | Support UVC and UAC |
| Support OS | Windows 7, 8, 10 or 11, 64bit; macOS 10.12 version or higher; Ubuntu 16.04 LTS 64bit or higher; Android 9.0 or higher |
| Support software | OBS, VLC, PotPlayer, Windows Media Encoder, Adobe Flash Media Live-Encoder, Real Producer Plus, Quick Time Broadcaster, Quick Time Player, Wirecast, vMix and etc. |
| Dimension | 105x68x25 LWH, mm |
| Power | max. 25W |
| Operating Temp. | 0-50 degrees C |
| Storage Temp. | -20 to 70 degrees C |
| Humidity | 5% to 90% |
