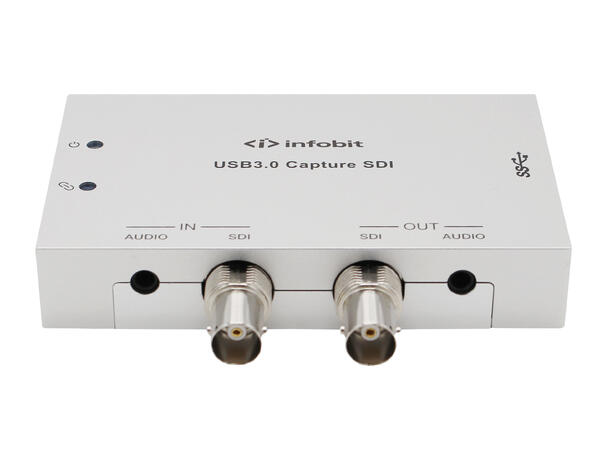

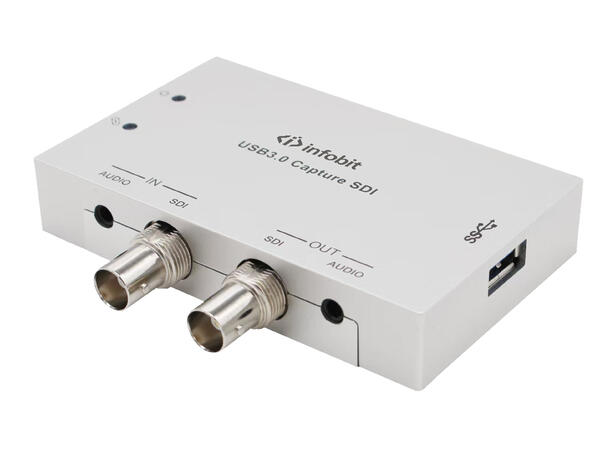

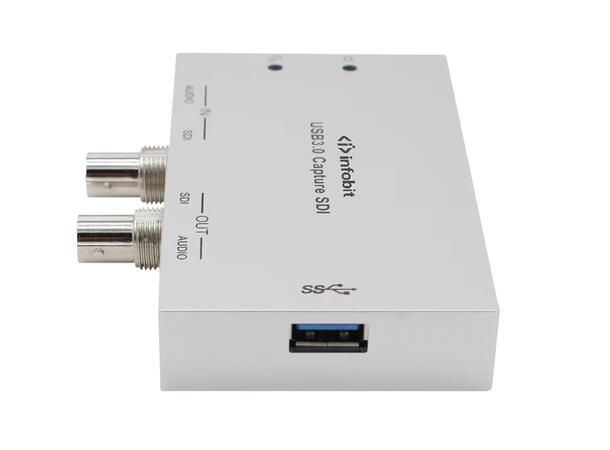

InfoBit - iSwitch UVC03S1080P SDI to USB3.0 Video Capture

iSwitch UVC03S

1080P SDI to USB3.0 Video Capture

Supports SDI video input capture and SDI loop output.

Supports resolution 480i~1080p60Hz input format video capture.

SDI input supports broadcasting standard SMPTE ST 425.

Supports analog stereo audio inputs. (Double audio inputs selected to capture audio.)

Supports analog stereo audio extract from SDI source.

Compatibles Windows, Linux, and OS X operating systems.

Compatibles USB3.0 about transmission rate up to 300~350MB/s.

Compatibles VLC, OBS, XSPLIT and AMCAP, etc. PC capture software.

Simple plug and play, no drive and setting installation required.

Diagram

Datasheet

Model	iSwitch UVC03S
Name	1080P SDI to USB3.0 Video Capture
Input ports	1×SDI IN [BNC] 1×AUDIO IN [3.5mm Stereo Mini-jack]
Output ports	1×USB [USB Type A, USB3.0—300~350MB/s 1×SDI OUT [BNC] 1×AUDIO OUT [3.5mm Stereo Mini-jack]
Input resolution	480i, 576i, 720p50/60, 1080i50/60, 1080p24/25/30/50/60
Output resolution	640×360, 640×480, 720×480, 720×576, 800×600, 856×480, 960×540, 1024×576, 1024×768, 1280×720, 1280×1024, 1280×960, 1280×800, 1368×768, 1440×900, 1600×1200, 1680×1050, 1920×1080
Frame Rate	25/29.97/30/50/59.94/60fps
Audio and video capture	UVC (USB video class) and UAC (USB audio class) standard
Supports OS	Windows 7/8/10, Linux (Kernel version 2.6.38 and above), OS X (10.8 and above)
Software compatibility	OBS (Windows), Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows, OS X), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X) and Potplayer (Windows) etc.
Housing	Metal Enclosure
Color	Silver
Dimensions	98mm [W] x 76.8mm [D] x 18mm [H]
Weight	125g
Power Consumption	2.25W
Operating Temperature	32 – 104°F / 0 – 40°C
Storage Temperature	-4 – 140°F / -20 – 60°C
Relative Humidity	20 – 90% RH (no condensation)
