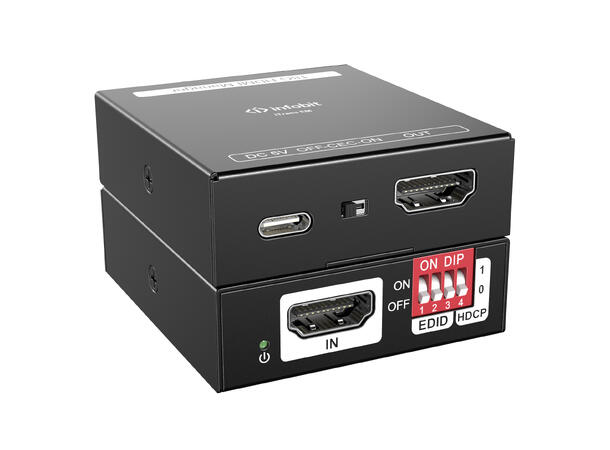

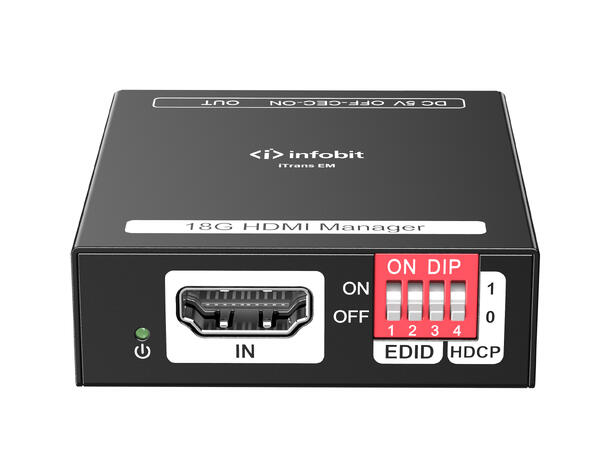

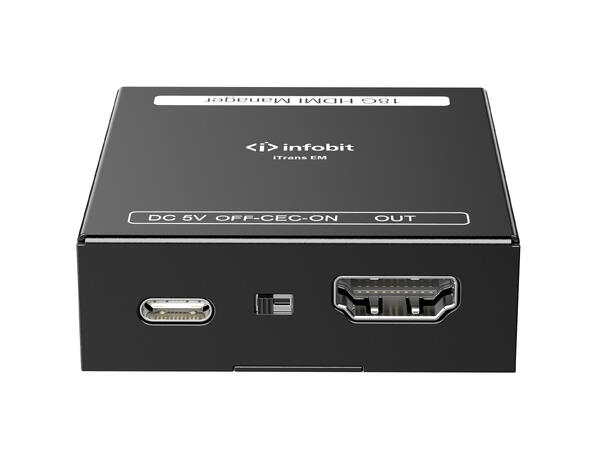

iTrans EM18G HDMI 2.0 4K@60 444 HDCP2.2.
Supports EDID & HDCP manager.
Power by HDMI or USB-C.
CEC block switch.
Designed to simplify installation issues, this compact device boasts a range of intelligent features:
Benefit by using iTrans EMThe iTrans EM allows integrators to add or remove HDCP devices, or re-route streams, without impacting the rest of the systems
(i.e. screens don’t go dark or freeze while the HDCP handshake is renegotiated).
Ensure EDID handshake successfullyWhen your devices are of different standards/generations, they may not be able to communicate as we expect.If EDID handshake fails, you won’t get the right image.
An EDID emulator may help streamline communication and fix the problem.
Ensure your KVM switch smoothlyWhen you are working on another device, the KVM switch cut the connection to your PC.
When you switch back, the EDID exchange will be initiated again and the icons are replaced as the data is refreshedand all icons arrangement messed up.
The solution is to add an EDID emulator to fix your issue.
Datasheet
Model iTrans EM
Name 18Gbps HDMI Manager with EDID & HDCP Manager
Input (1) HDMI 2.0
Input Connector (1) Female type-A
HDMI Input Resolution Up to 4K@60 4:4:4
Output (1) HDMI 2.0
Output Connector (1) Female type-A
HDMI Output Resolution Up to 4K@60 4:4:4
Bandwidth 18Gbps
Power Supply 5V 1A
Power Consumption 2.4W(MAX)
Dimension (W*H*D) 54x18x60mm
Net Weight 85g
