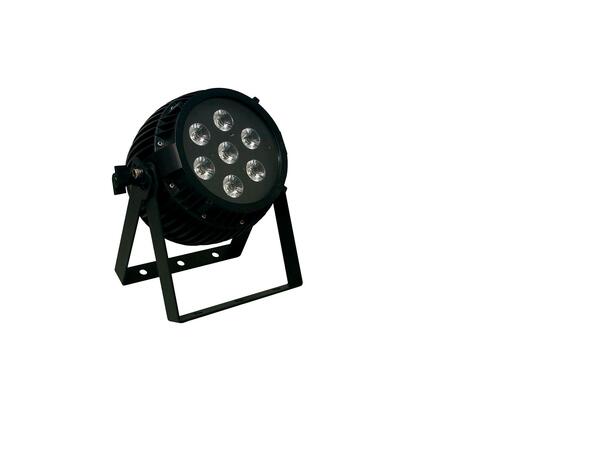

LED WI 712 is a lightingprojector it incorporates 7 LEDs 6 in 1( R,G,B,A,W,UV) of 12W each one. The posibility of making the mix from unique lightpoint, it allows to produce a colour with high uniformity when it lights up, walls, stages and specific places. Among its main features, stands out its built-in battery because it allows to use the device being at maximum power during 3 hours. Likewise it possible to control functions through wireless DMX,using, the UNIVERSAL CONTROL DMX device as external controller. It has several performance modes: Auto( with several programs), master/slave and DMX. In the last mode, it`s possible to select several channel modes: 12,9,7,6,5,4 including main dimmer, dimmers with primary colours.
Main information
7 x 12 W LED RGBWAUV
4/5/6/7/9/12 DMX channels with the possibility of wireless control.
IP 65
Buil-in battery
Product main measures (m)
0.17 x 0.27 x 0.29
Light engine 7 x LED RGBWA+UV 12 W/ 7 x 12 W LED RGBWAUV
Power 84 W
Beam angle 25º
DMX channels 4/5/6/7/9/12 canales DMX/ 4/5/6/7/9/12 DMX channels
Operating modes Auto, master/slave, DMX
Controls Configuration menu navigation buttons
Indicators 4-digit display
Colour Black
Rigging Double U-bracket handle
Silent Version Yes
IP Protection IP 65
Battery Litio. 25.9V /6.6Ah.
Wifi Yes. Control via UNIVERSAL CONTROL DMX (optional)
Power supply AC 100-240 50/60 Hz
Consumption 90 W
Dimensions 287 x 270 x 166 mm
Weight 5.2 Kg
