The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and multimedia for commercial applications. Bluetooth^®5.0 wireless input and user-intuitive OLED screen with quick-start QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas amplifiers offer the perfect combination of power, performance and flexibility.

The 250BL is perfect choice for DIYers looking for professional-grade audio without the complexity. A flexible choice for low-impedance 4/8-ohm systems, the 250BL is ideal for smaller rooms, boutique shops, and localized sound installations. Weighing just 4.4 pounds, its compact half-rack design allows for easy, discreet mounting virtually anywhere.

Premium amplification with advanced DSP for optimized performance
Bluetooth connectivity and RCA connectivity—no wire splicing required

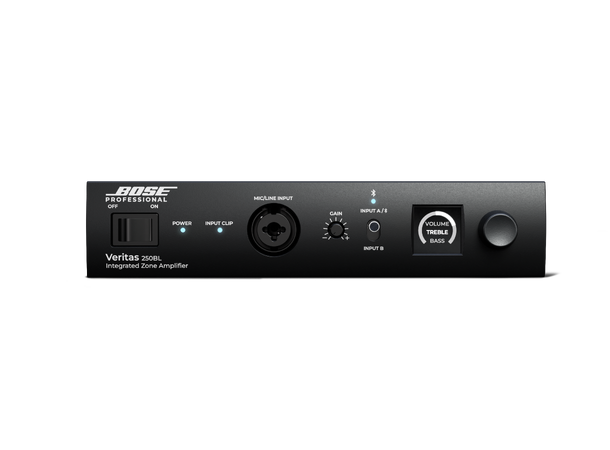

Intuitive front-panel OLED screen for easy setup and control

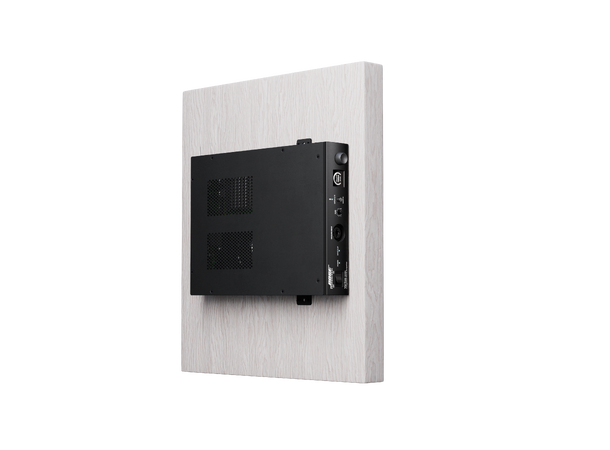

Included bracket accessory for mount-anywhere flexibility
Embedded quick-start QR code in the OLED screen simplifies installation
Supports low-impedance (4–8O) applications
Remote level control with Bose Professional or third-party wall controllers
Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes
Up to 30 selectable EQ presets ensure Bose Professional signature sound performance and long-term reliability
Opti-Voice paging feature ensures clear speech intelligibility
Convection cooling for fanless operation in quiet installs such as offices and conference rooms

Applications

Designed for a wide range of applications, including:

Retail stores
Restaurants and bars
Hospitality venues
Conference centers
Schools
Auxiliary zones

Technical Specification

AMPLIFICATION

Channel Separation (Crosstalk)
= -60 dBV below rated power, 1 kHz

Dynamic Range
88 dB

Frequency Response
40 Hz – 18 kHz (+0/-3 dB, @ 1 W reference 1 kHz)

Rated Power, Symmetrical
2 × 50 W at 4 O / 2 × 25 W @ 8 O

THD+N
=0.3 % (at full rated power)

AUDIO INPUTS, ANALOG

Input Channels
(2) unbalanced line, (2) balanced mic/line

Connectors
(2) RCA stereo pairs, (1) XLR/1/4-in, (1) 4-pin Euroblock

Input Impedance
20 kO (line), 2.4 kO (page)

Input Range
-10 dBV to +10 dBV (line), -60 dBV to +10 dBV (page)

Maximum Input Level
+10 dBV (line), +10 dBV (page)

Nominal Input Level
0 dBV (line), -40 dBV (page)

Sensitivity
-10 dBV (line), -58 dBV (page)

AUDIO OUTPUTS, ANALOG

Channels
(2) loudspeaker, (1) unbalanced line

Connectors
(2) 2-pin inverted Euroblock, (1) RCA stereo pair

Nominal Output Level
2 × 50 W @ 4 O min; 2 × 25 W @ 8 O max (loudspeaker), 0 dBV max (auxiliary)

Output Impedance
4 O (loudspeaker), 400 O (auxiliary)

ELECTRICAL

Mains Connector
IEC C14 inlet

Mains Voltage
100–240 VAC (±10%), 50/60 Hz

Protections
High temperature, output short

AC Power Consumption
15 W idle, 200 W maximum

INDICATORS AND CONTROLS

Controls, Front Panel
Power on/off switch, input select switch (A/Bluetooth/B), input gain knob (XLR/1/4-in), rotary encoder

Controls, Rear Panel
Input gain knobs (A, B, page), mute connector, ControlCenter port

INTEGRATED DSP

A/D and D/A Converters
48 kHz / 24-bit

Audio Latency
10.4 ms (any input to speaker output or aux output)

Presets
Flat, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer

Processing Functions
Loudspeaker EQ, Opti-Voice paging, Dynamic EQ

PHYSICAL

Cooling System
Natural convection

Product Dimensions (H×W×D)
44 mm × 214 mm × 310 mm (1.7 in × 8.4 in × 12.2 in)

Net Weight
2.0 kg (4.4 lb)

Shipping Weight
2.9 kg (6.4 lb)

Product codes

892120-1110
VERITAS 250BL 120V US

892120-2110
VERITAS 250BL 230V EU

892120-4110
VERITAS 250BL 230V UK

892120-3140
VERITAS 250BL 100V JP

892120-2140
VERITAS 250BL 230V CN

892120-5110
VERITAS 250BL 240V AU
