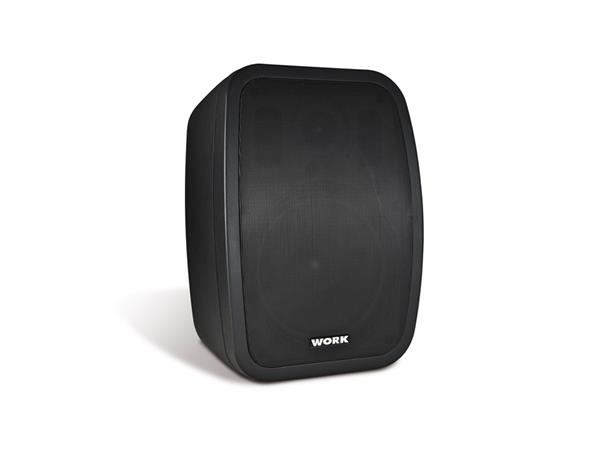

NEO 5A is an self-powered loudspeaker made of ABS plastic and white or black aluminum grille, composed of a 5.25'' loudspeaker and a 0.5'' tweeter. The set consists of an active box that contains a 2-channel 25 W amplifier that powers the same box that houses it and the passive box of the system.
NEO 5A is also very simple and quick to install, thanks to the new support designed exclusively for this model, which also allows a quick orientation of the box in both axes.
Sold in pairs (active + passive box).
Features
- Passive loudspeaker powered from active loudspeaker.
- Wall brackets included.
- IP 54 range.
| Type |
2 ways. Active + passive |
| Power |
2 x 25 W RMS |
| LF Transducer |
5.25" Woofer |
| HF Transducer |
0.5" Tweeter |
| Input Sensitvity |
1V / 2.21 dBu |
| Sensitivity (1W @ 1m) |
91 dB |
| SPL Max |
107 dB |
| Coverage Angle (H x V) |
90º x 70º |
| Frequency Range |
94 Hz - 20 KHz |
| Connections |
Audio In: 2 x RCA, 1 x Minijack 3.5 mm, Amp Out: Euroblock 2 pin, Passive: 2 x Binding post |
| Controls |
Power switch, Volume, Tone control (high, low), Voltage selector |
| Enclosure material |
Polypropylene |
| Grill |
Aluminum |
| Inserts / Rigging |
Wall brackets (included) |
| Colour |
White (RAL 9003), Black (RAL 9004) |
| IP Protection |
IP54 |
