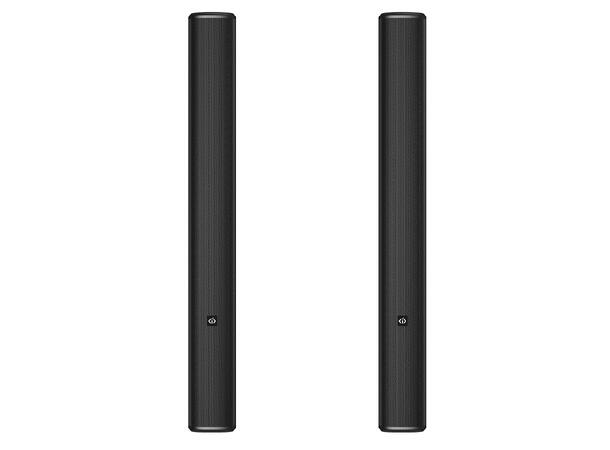

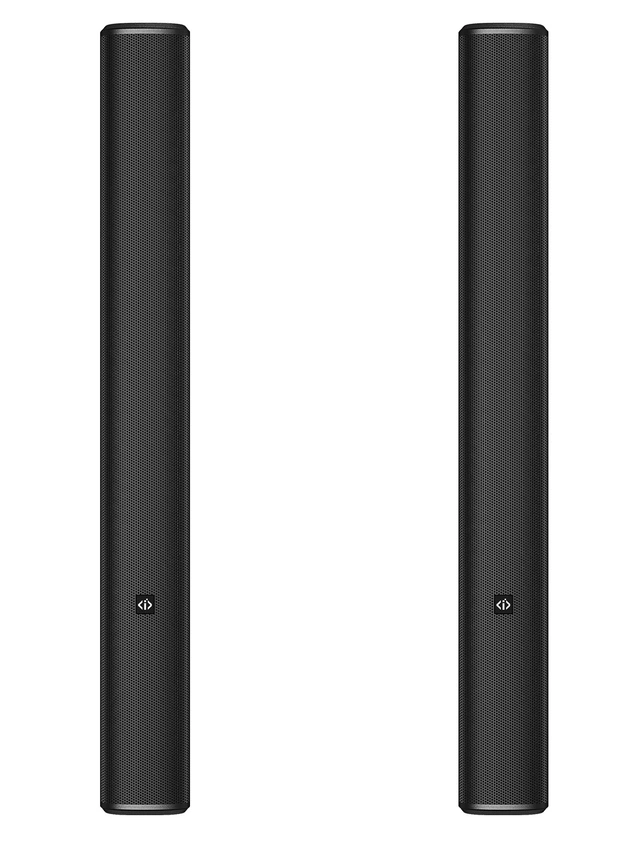

iSpeaker CS100
4×2.5? Neodymium Magnets
High Voltage/ Constant Impedance adjustable
Music/ human voice adjustable
Sensitivity level (1m/1W 4O): 94dB
Sensitivity level (1m/1W 70V/100V): 92dB
Rated power (4O): 100W
Rated power (70V): 60W / 30W / 15W / 7.5W
Rated power (100V): 30W / 15W / 7.5W / 3.7W
Diffusion angle: 20° vertically, 120° horizontally
Effective frequency range 106Hz~20KHz
Streamlined design and a newly designed industrial black color.
It is suitable for sound reinforcement in various architectural spaces and has beautiful sound quality.
ABS mixed aluminum alloy reinforced cabinet, strong and durable.
The newly designed circular waveguide hole forms a unique low-frequency heart-shaped diffusion, the treble is crisp and pleasant, the sound performance is natural and thick, and with full bass.
Light-weight and Elegant design
This feature solves the challenge that traditional conference room speakers are
too big and unsightly when hung on the wall.
Datasheet
Model iSpeaker CS100
Name 100W Column Speaker
Structure 4x 2.5? Neodymium Magnets
Input mode High Voltage/ Constant Impedance adjustable
Operating mode Music/ human voice adjustable
Rated power (4O) 100W
Rated power (70V) 60W / 30W / 15W / 7.5W
Rated power (100V) 30W / 15W / 7.5W / 3.7W
Effective frequency range 106Hz~20KHz
Sensitivity level (1m/1W 4O) 94dB
Sensitivity level (1m/1W 70V/100V) 92dB
Diffusion angle 20° vertically, 120° horizontally
Sound pressure level In specified frequency band (4O): 111dB
Sound pressure level In specified frequency band (70V/100V): 109dB
Cover material Metal mesh
Chassis material ABS mixed aluminum alloy reinforced cabinet
Installation dimension Adjustable angels wall-mounting
Port 1x NL4 (+1/ -1), 1x Phoneix port
Color Black (Default); Apple Gray ( Customized)
Net Weight 3.2kg
Gross Weight 4.7kg
Dimension 670x100x80mm
