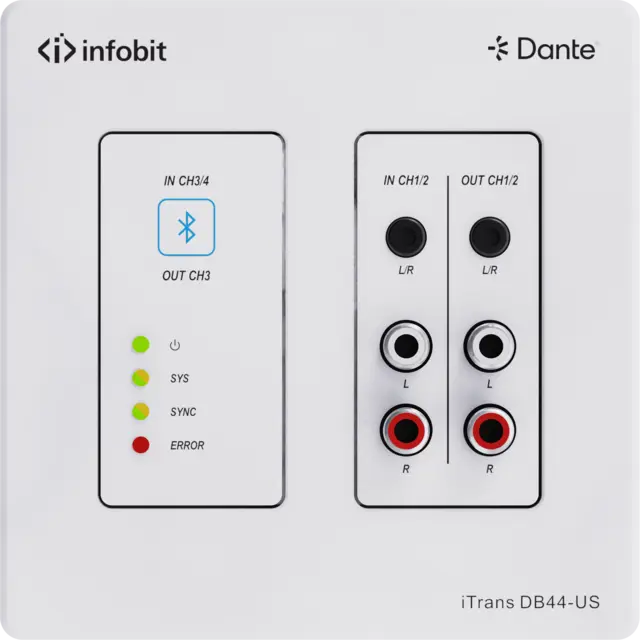

iTrans DB44-US

Dante 4×3 wall panel with Bluetooth.

One-key pairing with back-lit indication;

Supports Bluetooth 5.3, compliant with V5.0/4.0/2.1+EDR

Transmission distance without obstruction: up to 20m.

Compatible with most smartphones, Apple iPads, and Android tablets.

Controllable by Web-UI, Dante Controller, or Dante Director software.

Supports API for the central control.

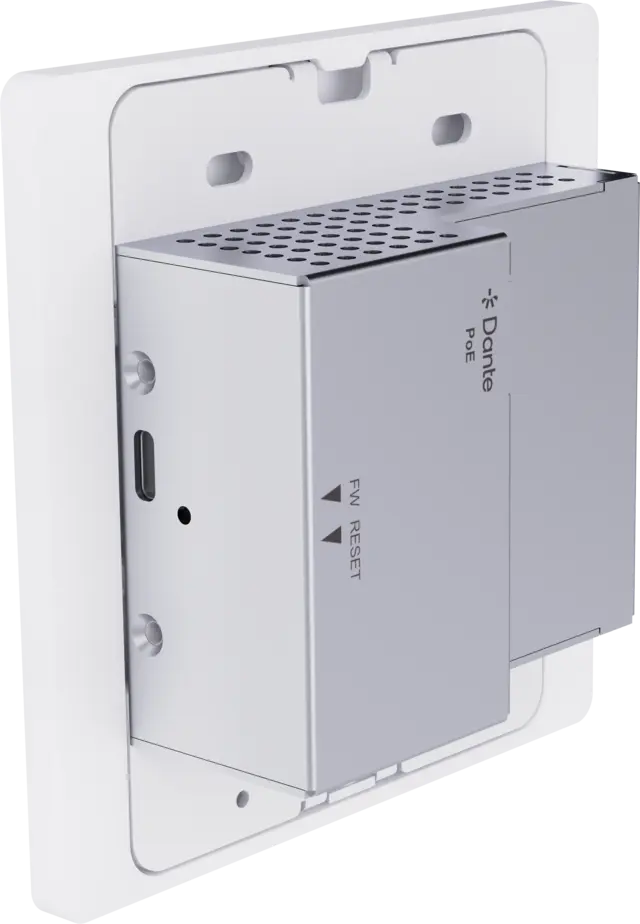

Powered by a network switch via PoE (IEEE 802.3af).

Support Bluetooth ID rename.

US 2-Gang version

The convenience of wireless, the power of Dante

The iTrans DB44-US Bluetooth® wall plate lets you leverage the audio quality and connectivity of your Dante audio networks while being as easy to use as any Bluetooth® audio source. Simply pair the Bluetooth® adapter with your phone or PC for instant networked audio. Power is supplied via PoE, so there are no AC adapters to worry about.

Renaming matters

The iTrans DB44-US support renaming the Bluetooth ID, ensure never connect wrong devices for multi-room projects.

BLUETOOTH® and Dante

Wirelessly connect any PC or mobile device to your Dante audio network
No additional software or drivers required
Seamlessly migrate calls on mobile devices to
Dante-enabled conference room system
Channel routing is stored in the iTrans DB44-US
for consistent connections when used with
any Bluetooth-enabled device

Datasheet

Model	iTrans DB44-US
Name	4×3 CH Dante Bluetooth Wallplate US 2-Gang Version
Input	(1) L+R unbalanced analog audio (1) 3.5mm unbalanced analog audio
Input Connector	(2) RCA jack, (1)3.5mm mini jack
Output	(1) L+R unbalanced analog audio (1) 3.5mm unbalanced analog audio
Output Connector	(2) RCA jack, (1) 3.5mm mini jack
Gain	0 dB
Volume	Input: -12 ~ +18dB, 6dB per step Output: -60 ~ 0dB, 1dB per step
Max Level	Input: +12 dBu @ 0dB input gain Output: +12 dBu @ 0dB output gain
S/N Ratio	> 90dB @ Max Level (A-weighted)
Output Noise	< -79 dBu @ 0dB gain (A-weighted)
THD	< 0.05% at 0dBu,1kHz, 0dB gain (A-weighted)
Sample Rate	44.1kHz or 48kHz
Control Methods	(1) Web-UI and Dante control (1) Pair button
Control Connector	(1) RJ45 (1) Bluetooth button
External Power Supply	PoE (IEEE 802.3af)
Operation Temperature	– 5? ~ + 55? (23? ~ 131?)
Storage Temperature	– 25? ~ + 70? (-13? ~ 158?)
Relative Humility	90% RH or less (No condensation)
Power consumption	4.22W (Max)
Dimension (W*H*D)	115 x 115 x 42 mm
Net Weight	265g
