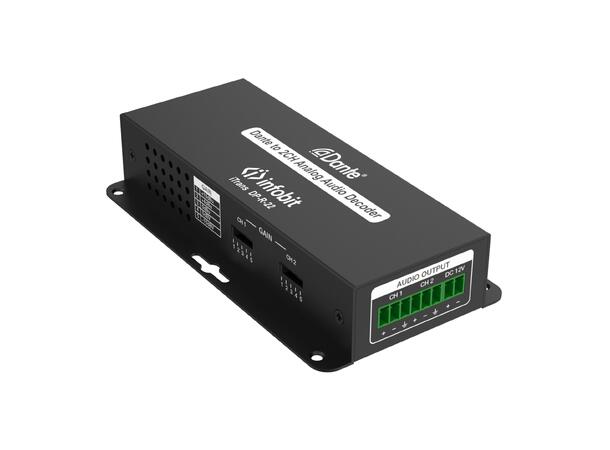

iTrans DP-R-22
Analog audio output supports balanced/unbalanced audio output (unbalanced access to “+” and “GND”)
Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
Dante solution supports AES67 RTP audio transmission
Audio output supports 3-level gain adjustment: +18dBu, 0dBu (default) and -10dBV
Support DC 12V power supply and POE function (IEEE802.3af Class 0)
Datasheet
| Model | iTrans DP-R-22 |
| Name | iTrans Dante Phoenix Receiver, 2CH |
| Video Network Bandwidth | 100M |
| Audio Formats | PCM 2.0 44.1kHz/48kHz/96kHz, up to 24bit |
| Transmission Distance | 100m (CAT6/6A) |
| Inputs | 1x DANTE [RJ45 connector, POE]
1x PWR [2-pin phoenix, 3.81mm] |
| Output | 1x AUD [6-pin phoenix, 3.81mm] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 120mm[W] x 47mm[D] x 26mm[H] |
| Weight | 186g |
| Power Supply | DC input: 12V
POE input: IEEE802.3af Class 0 |
| Power Consumption | 1.32W |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Storage temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |
| Control Method | Dante Controller |
