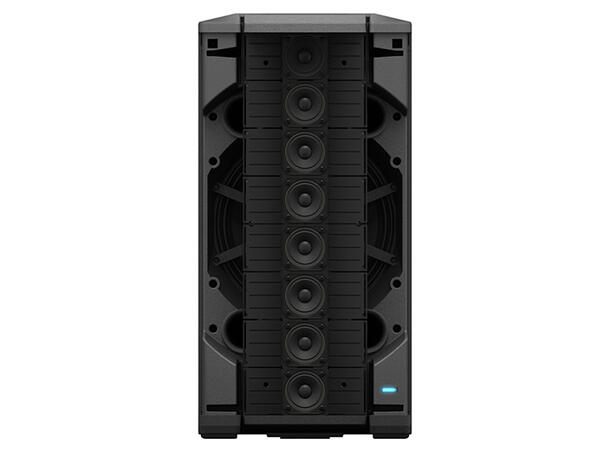

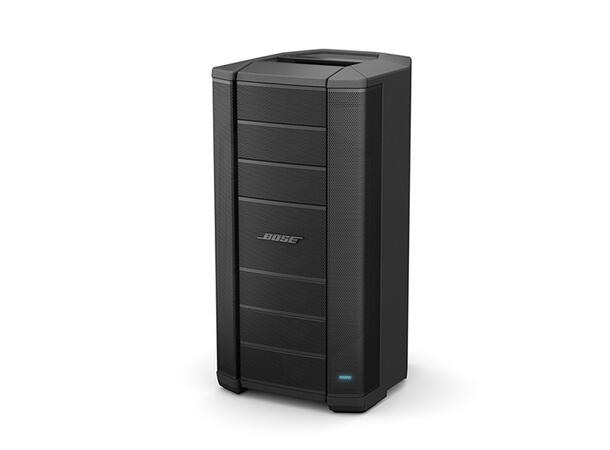

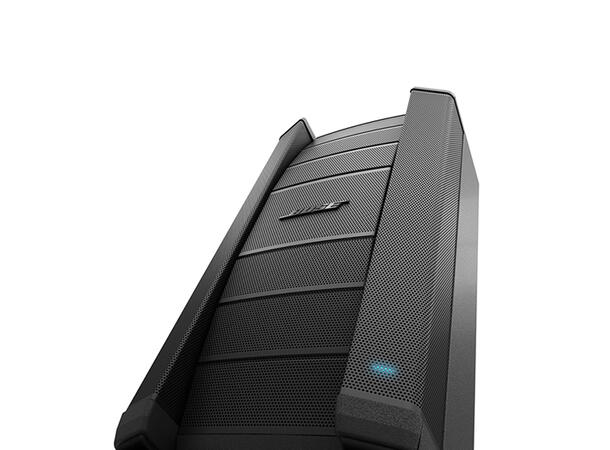

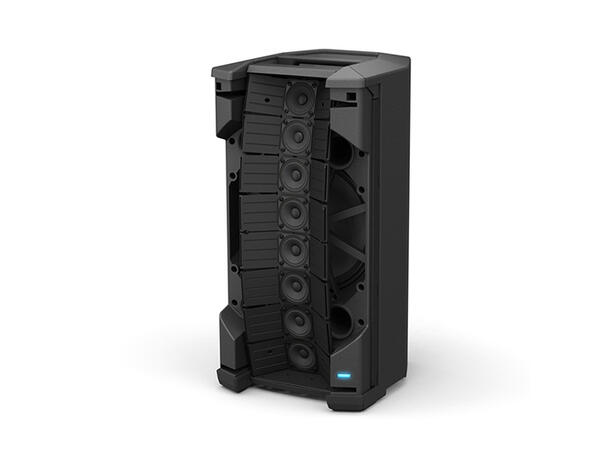

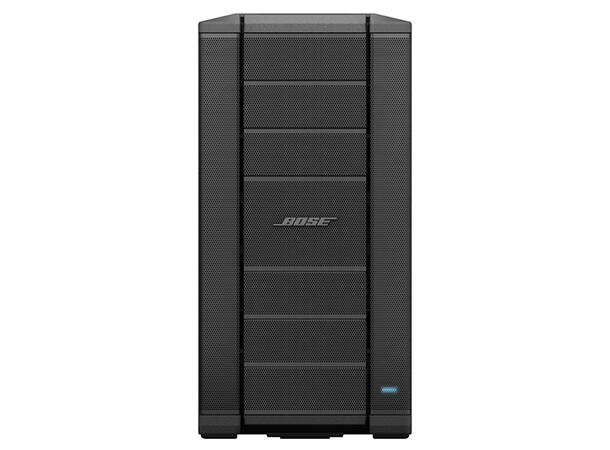

Powerful, standalone sound that flexes to meet your coverage needs — the Bose F1 Model 812 is a 1000-watt, full-range loudspeaker featuring Bose Flexible Array technology. At the heart of the F1 is a 12-inch woofer nested behind an array of eight high-output drivers. These nine speakers are supported by a lower crossover point than conventional loudspeakers — to give full voice to your sound and deliver clearer, more natural vocals and midrange clarity, even at high volumes. And you control the vertical coverage pattern. So, wherever you’re playing, you can adapt the PA to match the room. With the Bose F1 Model 812, your sound stands alone.

FEATURES

• Portable, standalone design with built-in 1000-watt amplifier and nine transducers: eight high-output drivers and a 12-inch high-power woofer

• Lower crossover point than conventional loudspeakers for clear and natural vocals even at high volumes

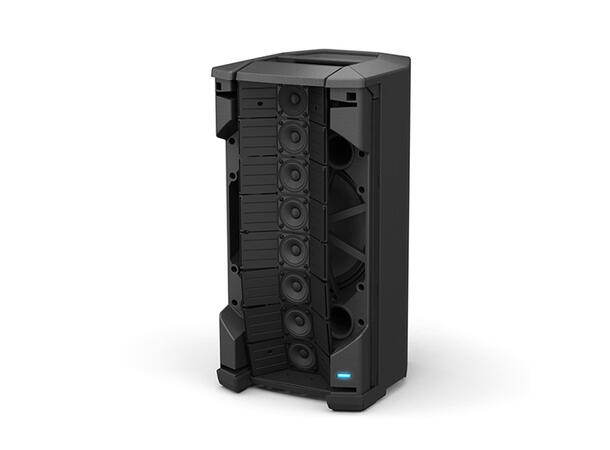

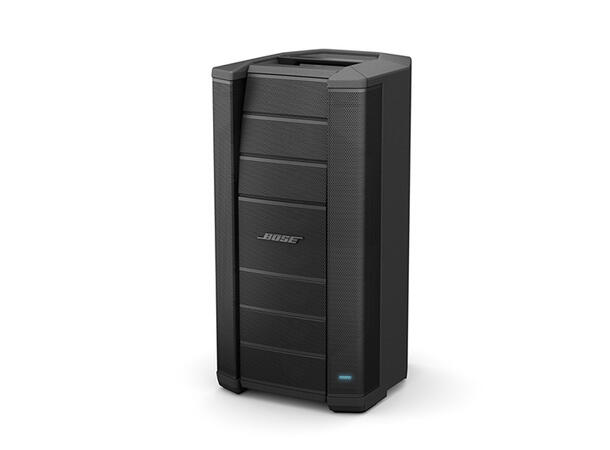

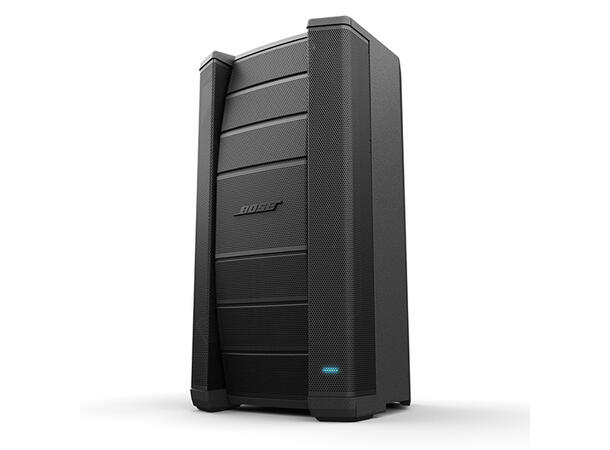

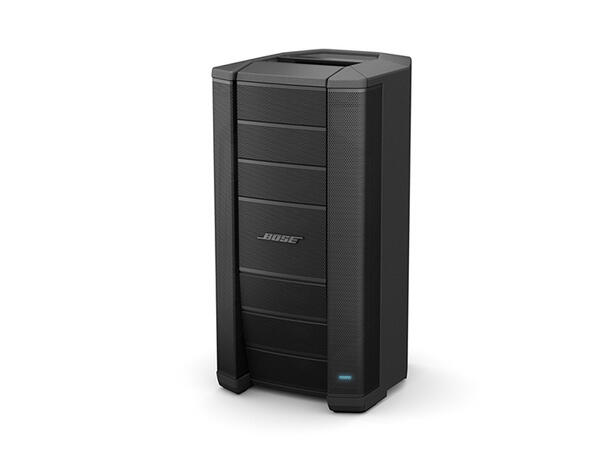

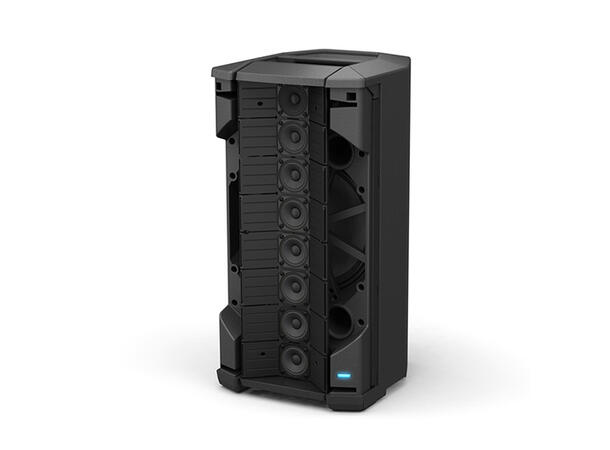

• Flexible Array technology: easily adjust coverage pattern — Straight, C, J, or Reverse J — to optimize sound for different spaces: floor level, on stage, for raked seats or bleachers, and more

• Automatic EQ adjusts to maintain optimum tonal balance for each coverage pattern

• Built-in handles for easy transport and compatible with standard 35 mm speaker stands (sold separately)

• Optional Bose F1 Subwoofer (sold separately) for even more low-frequency response

• Optional Bose F1 Subwoofer (sold separately) for even more low-frequency response

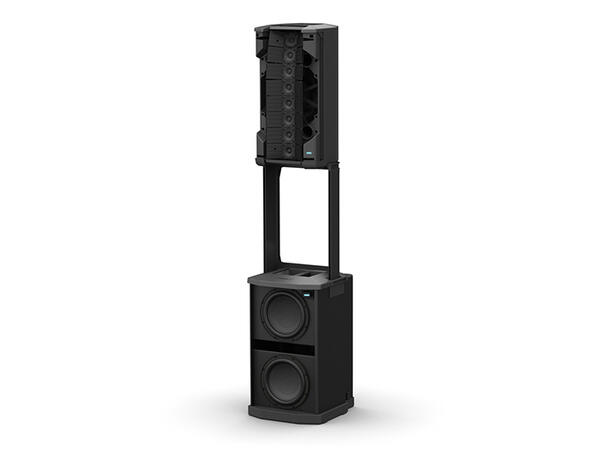

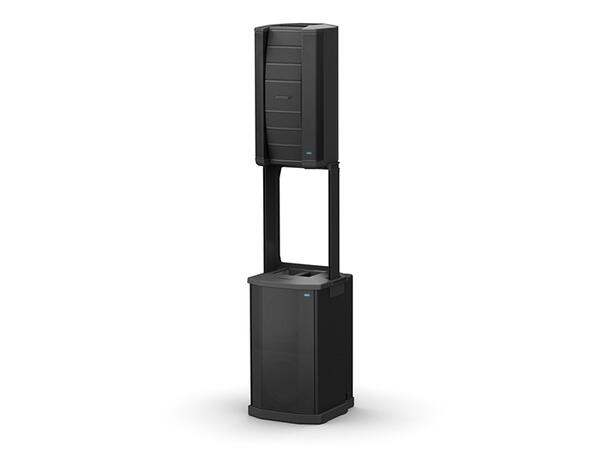

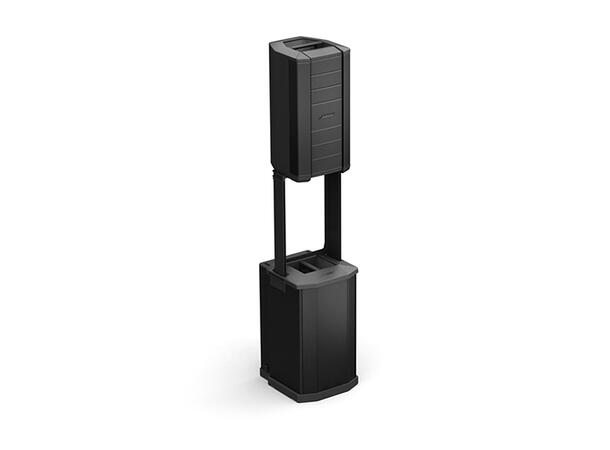

  Integrated speaker stand for F1 Model 812
  Built-in 1000-watt amplifier

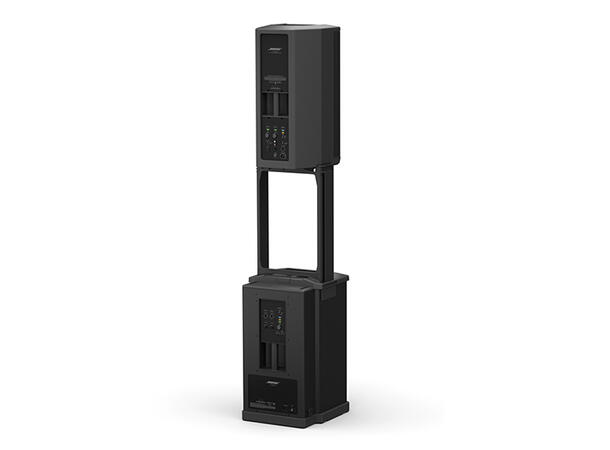

  Hidden cable channels for clean appearance
  Built-in handles for easy transport

Applications

Designed for a wide range of applications, including:

• Live music performances
• Bands of all styles
• Solo musicians
• Mobile DJs
• Houses of worship
• Schools and universities
• Resorts and hospitality venues
• Business presentations

SPECS

Technical Specification

• Number of Channels

• 2

• Power Class

• Class D

• THD+N

• 0.1% maximum (30 Hz – 15 kHz)

• Input Channels

• 2

• Connectors

• (1) XLR-1/4-in combo, (1) RCA stereo pair, (1) 1/4-in TS/TRS

• Sensitivity Options

• -Infinity to +34 dB, line / -Infinity to +54 dB, mic, -Infinity to +26 dB, RCA / -Infinity to +20 dB, 1/4-in

• Phantom Power

• No

• AC Power Connector

• IEC

• AC Power Input

• 100-240 V, 50/60 Hz

• Software Applications

• No

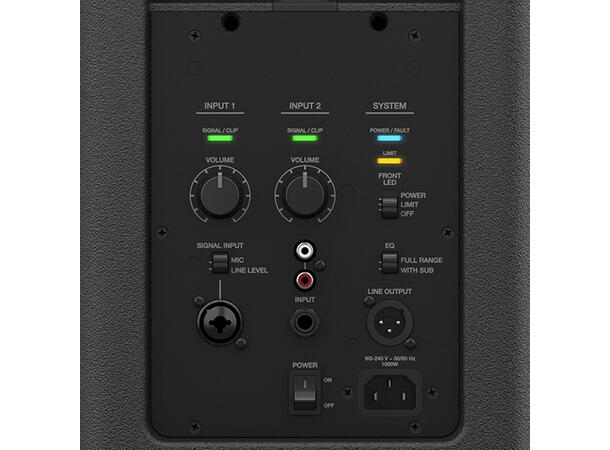

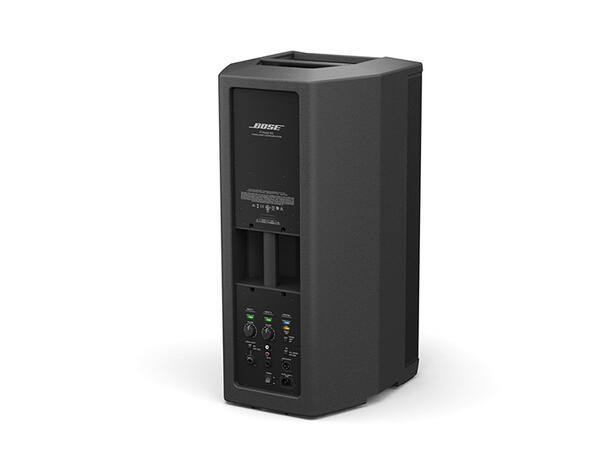

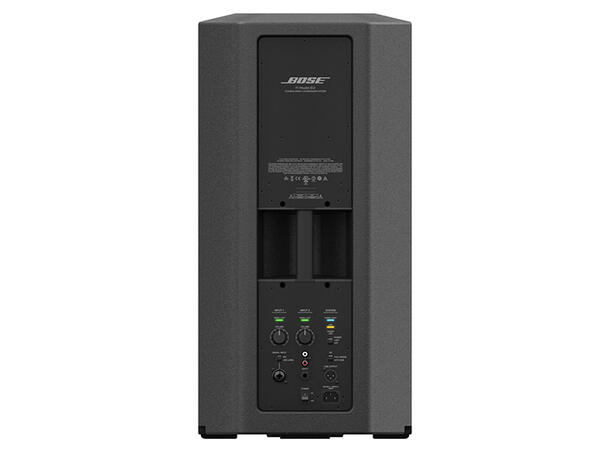

• Controls, Rear Panel

• Volume level, Signal input select, Front LED function select, EQ V

• LED Status Indicators

• (1) power/fault LED, (2) signal/clip LEDs, (1) limit LED, (1) configurable front-panel LED

• DSP-Enabled

• Yes

• Processing Functions

• Output EQ, limiter

• Colors

• Black

• Enclosure Material

• High impact composite materials

• Grille

• Steel, powder-coated finish

• Operating Temperature Range

• 0 °C to 50 °C (32 °F to 122 °F)

• Product Dimensions (H×W×D)

• 26.1 in × 14.6 in × 13.1 in (663 mm × 371 mm × 333 mm)

• Net Weight

• 44.5 lb / 20.2 kg

• Shipping Dimensions (H×W×D)

• 32.5 in × 20.0 in × 18.5 in (826 mm × 508 mm × 470 mm)

• Storage Temperature

• -30 °C to 70 °C (-22 °F to 158 °F)

• Shipping Weight

• 55.0 lb (24.9 kg)

• Frequency Range (-10 dB)

• 43 Hz – 20 kHz

• Coverage, Horizontal

• 100°

• Calculated Maximum SPL @ 1 m

• 132 dB

• Power Handling, Peak

• 1000 W

• Coverage, Vertical

• 40°

• Crossover

• 600 Hz, 4th-order Butterworth

• Driver Protection

• Dynamic limiter

• High-Frequency

• 8 × 2.25 in (57 mm) mid-high-frequency drivers

• Low-Frequency

• 1 × 12 in (305 mm) low-frequency driver

Mechanical Diagrams

Product codes

• 731419-1110
• F1 MODEL 812 FLEX ARRAY LDSPKR 120V US

• 731419-2110
• F1 MODEL 812 FLEX ARRAY LDSPKR 230V EU

• 731419-3110
• F1 MODEL 812 FLEX ARRAY LDSPKR 100V JP

• 731419-4110
• F1 MODEL 812 FLEX ARRAY LDSPKR 230V UK

• 731419-5110
• F1 MODEL 812 FLEX ARRAY LDSPKR 240V AU

Warranty Period

• 2 years

Included in Packaging

• (1) IEC power cord
