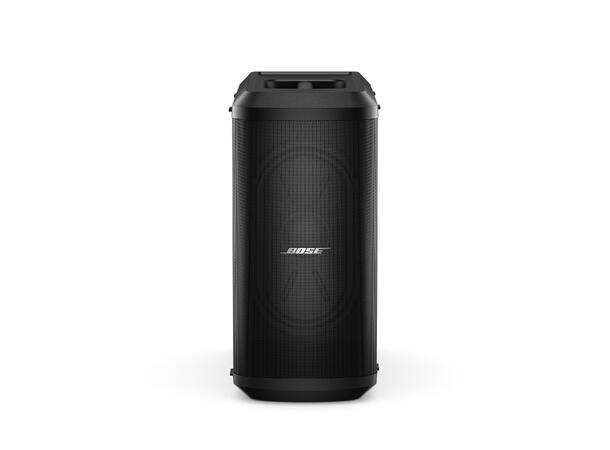

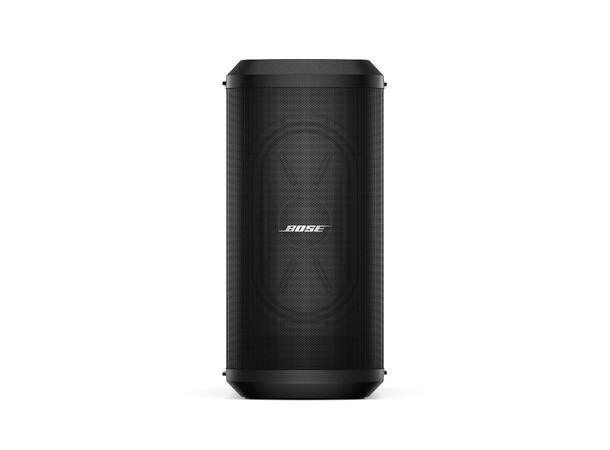

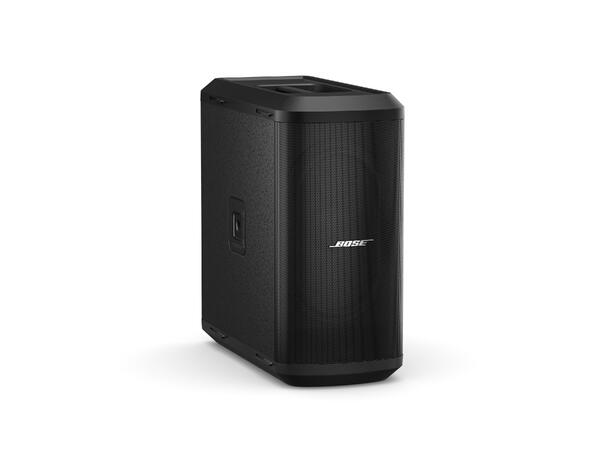

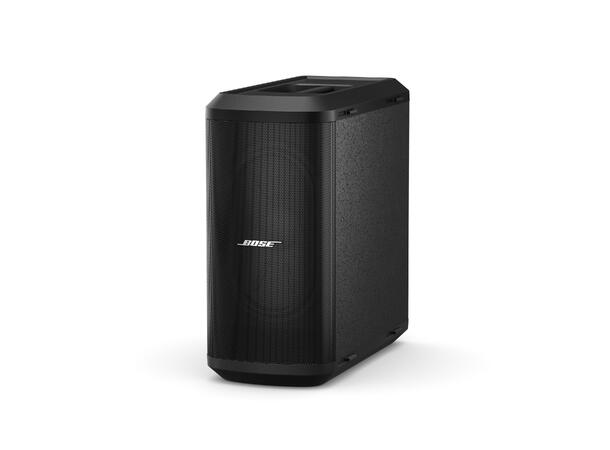

A powered, portable bass module, the Sub2 subwoofer combines with virtually any portable PA and delivers low-end performance down to 37 Hz. Its unique 10 × 18-inch high-excursion neodymium RaceTrack driver allows for an ultra-slim enclosure, delivering performance that rivals traditional round drivers without the cumbersome size, freeing up room in your vehicle and on the stage. Compared to the Sub1 subwoofer, Sub2 is the more powerful subwoofer option for the Bose L1 Pro32 system, combining seamlessly via single-cable SubMatch connectivity. You can stack multiple Sub2 subwoofers for even more low end — or to unleash Cardioid Mode for directional bass. With a Sub2, you get a subwoofer that easily fits onstage — and effortlessly fills up the dance floor.

FEATURES

• Add powerful bass to your portable PA system with low-end range down to 37 Hz

• Go from vehicle to venue easily with a slim design featuring a unique 10 × 18-inch high-excursion neodymium RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint

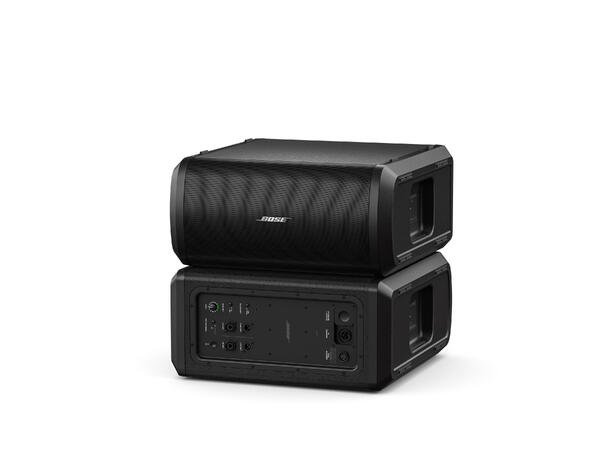

• Stack multiple Sub2 subwoofers for even more bass or unleash Cardioid Mode for focused, directional performance that steers the bass out front and decreases feedback

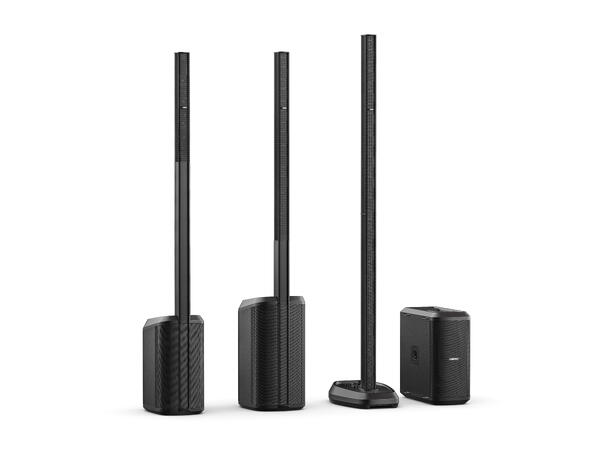

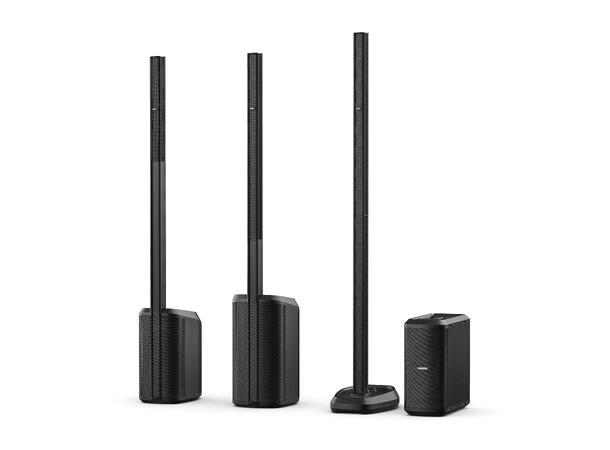

• Combine seamlessly with Bose L1 Pro32 portable line array via proprietary SubMatch connectivity, which delivers both power and audio over a single cable

• Pair with other powered loudspeakers via line input and output with selectable crossover modes, plus integrated threaded pole mount for use with Bose S1 Pro PA and more

Applications

Designed for a wide range of applications, including:

• Houses of worship
• Schools and universities
• Resorts and hospitality venues
• Live music performances
• Business presentations
• Mobile DJs

SPECS

Technical Specification

• Number of Channels

• 1

• Power Class

• Class D

• Input Channels

• 2

• Connectors

• (1) XLR-1/4-in TRS combo, (1) SubMatch (proprietary multi-pin cable)

• Sensitivity Options

• +10 dB to +45 dB, input to driver

• Phantom Power

• No

• AC Power Connector

• IEC, SubMatch

• AC Power Input

• 100–240 VAC (±20%, 50/60 Hz)

• Current Draw, Inrush

• 15.2 A at 120 VAC, 60 Hz / 28.6 A at 230 VAC, 50 Hz

• Software Applications

• Bose Music (Android, iOS)

• Computer Interface Connection

• USB Type-C

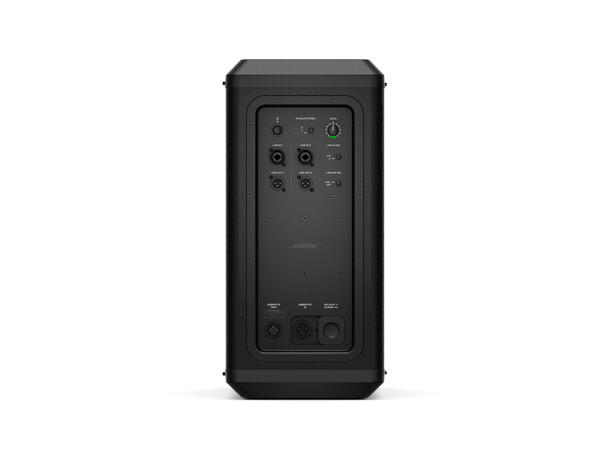

• Controls, Rear Panel

• Power, EQ, and Volume Control

• LED Status Indicators

• (1) standby LED, (1) signal/clip LED, (2) input EQ LEDs, (2) output EQ LEDs, (3) phase/pattern LEDs

• DSP-Enabled

• Yes

• Processing Functions

• Input EQ, output EQ, phase/pattern polarity inversion

• Colors

• Black

• Enclosure Material

• High-impact polypropylene, birch plywood

• Grille

• Perforated steel, powder-coated finish

• Cooling System

• Convection cooling

• Product Dimensions (H×W×D)

• 27.3 in × 12.5 in × 21.7 in (694 mm × 317 mm × 551 mm)

• Net Weight

• 50.7 lb (23.0 kg)

• Shipping Dimensions (H×W×D)

• 26.0 in × 15.2 in × 31.1 in (660 mm × 385 mm × 790 mm)

• Shipping Weight

• 61.0 lb (27.7 kg)

• Frequency Range (-10 dB)

• 29 Hz – 260 Hz

• Calculated Maximum SPL @ 1 m

• 129.8 dB

• Power Handling, Peak

• 1000 W

• Coverage, Vertical

• Omnidirectional (with -10 dB rear rejection in cardioid mode)

• Crossover

• 200 Hz

• Low-Frequency

• 1 × RaceTrack low-frequency 10 × 18 in (254 × 457 mm) driver

VIDEOs

Product codes

• 840917-1100
• SUB2 POWERED BASS MODULE,120V,US

• 840917-2100
• SUB2 POWERED BASS MODULE,230V,EU

• 840917-3100
• SUB2 POWERED BASS MODULE,100V,JP

• 840917-4100
• SUB2 POWERED BASS MODULE,230V,UK

• 840917-5100
• SUB2 POWERED BASS MODULE,230V,AU

• 840917-5130
• SUB2 POWERED BASS MODULE,230V,INDIA

Warranty Period

• 2 years

Included in Packaging

• (1) IEC power cord

• (1) slip cover

DOWNLOADS

• Quick Start Guide

• Firmware Update Instructions (Multilingual)

• Owners Manual (Multilingual)

• CAD Files (zip)

• Technical Data Sheet

• Compliance Documents
