Take control of your music with the T4S ToneMatch mixer, an ultra-compact 4-channel interface designed for performers. Engineered with a powerful DSP engine and intuitive user control, the T4S offers studio-quality EQ, dynamics and effects. Sound great with integrated Bose ToneMatch processing and zEQ, especially when connected to a Bose L1 or F1 system for full end-to-end tonal control. Play confidently on stage with the rugged T4S using its tactile controls, easy-to-read LED display and scene recall. The T4S, a true performer’s companion.

FEATURES

• Powerful Audio Processing:

  Updated, studio-quality effects with advanced digital audio processing

  High-quality effects include compressor, limiter, de-esser, noise gate, chorus, flanger, phaser, tremolo, delay and reverb

  Bose ToneMatch processing for natural-sounding vocals and instruments

  zEQ focuses the sound of ToneMatch presets for effective adjustments on the fly

  Independent ToneMatch, EQ, dynamics and effects per channel

  Dedicated reverb on Aux 1 send, and a global shared reverb for use across all channels

  Master output EQ helps compensate for venue acoustics

  Full end-to-end tonal optimization when used with Bose L1 and F1 systems

• Seamless Live Control:

  Tactile controls and indicators designed for live, on-stage use

  Fast-learning user interface

  Built-in tap tempo delay, chromatic tuner, and recallable scenes

  LED display and illuminated controls are easy to read and use, even on dimly-lit stages

• High-Density Connectivity:

  Unprecedented connectivity and control in a small digital stereo mixer

  Four high-quality audio preamps with XLR-combo jacks for microphones or instruments, and switchable phantom power

  Two ToneMatch outputs for digital audio and power

  Two Aux sends, and Two Aux inputs for additional sources

  USB-A and -B for USB drive playback or PC/Mac interfacing

  Independent headphone and balanced 1/4-inch; TRS stereo outputs

• Convenient Gig-Ready Features:

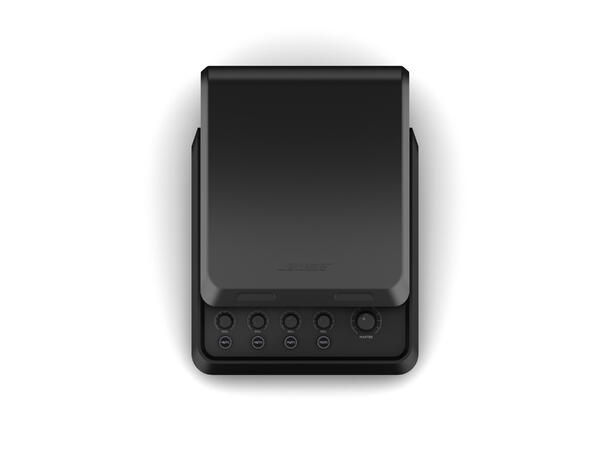

  Rugged enclosure with a protective magnetic cover to protect controls and connectors

  Includes a ToneMatch cable for connecting to a Bose L1 PRO system for digital audio and power

  Bottom insert allows you to use standard mounting accessories to keep your T4S within reach

Applications

Designed for a wide range of applications, including:

• Corporate AV
• General purpose PA
• Live streaming
• Mobile DJs
• Singer/songwriters

SPECS

Technical Specification

• Input Channels

• 4 XLR combo jacks, 2 TRS 1/4-in jacks

• Phantom Power

• 48 VDC, all channels

• Channels

• 4 balanced, line

• Computer Interface Connection

• USB Type-B

• Display

• OLED

• Equalization

• 3-band EQ

• DSP-Enabled

• Yes

• Presets

• Bose factory presets, user presets

• Sample Rate / Bit Depth

• 48 kHz / 24-bit

• Colors

• Black

• Product Dimensions (H×W×D)

• 8.4 in × 7.3 in × 3.3 in (214 mm × 184 mm × 83 mm)

• Net Weight

• 2.1 lb (1.0 kg)

Product codes

• 785403-0110
• T4S TONEMATCH MIXER

Included in Packaging

• (1) ToneMatch mixer & cover

• (1) ToneMatch cable

DOWNLOADS

• ToneMatch Updater v2.1 for Windows

• ToneMatch Updater v.2.1 for macOS

• Quick Start Guide

• Owners Manual (Multilingual)

• Firmware Update Instructions (Multilingual)

• Compliance Documents

• Product Image Files
