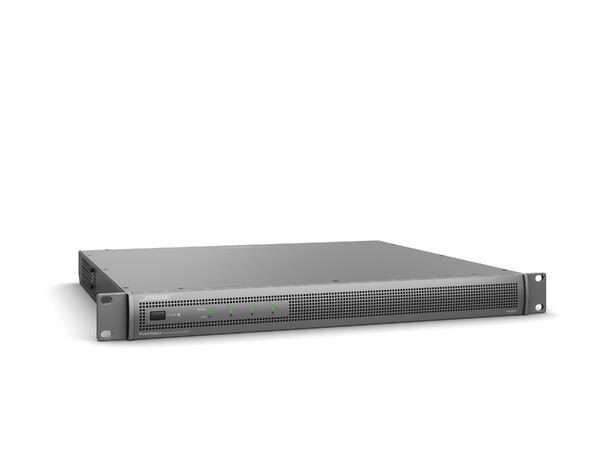

BOSE POWERSPACE P4150+

230V EU

Varenr: 810965-2110

eks. mva

Beskrivelse
Dokumenter

The Bose Professional PowerSpace P4150+ amplifier combines power and DSP into a 1RU, four-channel design for quick-turn installations. Part of a comprehensive platform of loudspeakers, controls, and software that help installers deliver premium commercial sound systems efficiently, Bose Professional PowerSpace+ amplifiers feature a quick-setup workflow. An onboard configuration utility and intuitive browser-based UI present common tasks in a logical manner, so you can configure the system faster, reducing installation time while increasing setup accuracy. Once installed, proprietary algorithms offer predictable performance while optional interfaces — such as ControlCenter analog zone controllers — make operation easy for end users. For premium commercial applications, Bose Professional PowerSpace+ models provide amplification and DSP in one integrated, easy-to-configure package.

FEATURES

150 watts per channel and works seamlessly with Bose Professional loudspeakers and controls to create complete commercial sound systems
Built-in DSP, including SmartBass processing, routing, level control, delays, limiters, Bose Professional loudspeaker EQs, plus input and area EQs
PowerSpace configuration utility facilitates setup with an integrated webserver and intuitive browser-based UI, including real-time control with signal and thermal monitoring
Opti-Voice paging provides a smooth transition between music and announcements
Integrated features to simplify commercial installations: Dedicated input for 600 O telephone or mic paging, independent 600 O music-on-hold and line-level aux outputs, and a NO/NC mute connection
Load-independent outputs deliver full channel power to either low-impedance loads (4-8 O) or high-impedance (70/100V) loads without bridging
I-Share outputs deliver 2x power level by combining the current of two channels
Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns
Intuitive end-user operation — optional ControlCenter CC-1, CC-2, and CC-3 analog zone controllers provide easy volume control and source selection

Applications

Designed for a wide range of applications, including:

Retail stores
Restaurants and bars
Hospitality venues
Conference centers
Schools
Auxiliary zones

SPECS

Technical Specification

AMPLIFICATION

Channel Separation (Crosstalk)
> 80 dB at 1 kHz, > 65 dB at 20 kHz

Dynamic Range
= 100 dB at rated power, A-weighted

Gain, High-Impedance
35 dB, 70V mode / 38 dB, 100V mode

Gain, Low-Impedance
29 dB

Maximum Peak Power, Symmetrical
300 W

Frequency Response
20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 O / 20 Hz – 20 kHz (±1 dB) at 1 W with 50 Hz high-pass filter, 70/100V

Number of Channels
4

Power Class
Class D

Rated Power, Symmetrical
150 W

THD+N
< 0.04% at 1 kHz, 4–8 O, 70V/100V

AUDIO INPUTS, ANALOG

Input Channels
4 balanced, 2 unbalanced

Connectors
(3) 3-pin Euroblock, (1) 4-pin Euroblock, (2) RCA stereo pairs

Input Impedance
10 kO

Maximum Input Level
22 dBu at 14 dBu sensitivity

Sensitivity
-10 dBV, 4 dBu, 14 dBu

AUDIO OUTPUTS, ANALOG

Channels
6 (4 loudspeaker + 2 auxiliary)

Connectors
(1) 8-terminal block, (1) 3-pin Euroblock, line

COMPLIANCE

EMC
This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment.

ELECTRICAL

Mains Connector
IEC C14 inlet

Mains Voltage
100–240 VAC (±10%), 50/60 Hz

AC Power Consumption
25 W auto-standby, 325 W maximum

GENERAL

System Requirements
Google Chrome 64.0.3282.140 or later / Mozilla Firefox Quantum 58.0.2 or later / Microsoft Internet Explorer 11.2007.14393.0 or later / Microsoft Edge 38.14393.1066.0 or later

Software Applications
PowerSpace+ Configuration Utility (web browser)

Computer Interface Connection
RJ-45 (Ethernet)

INDICATORS AND CONTROLS

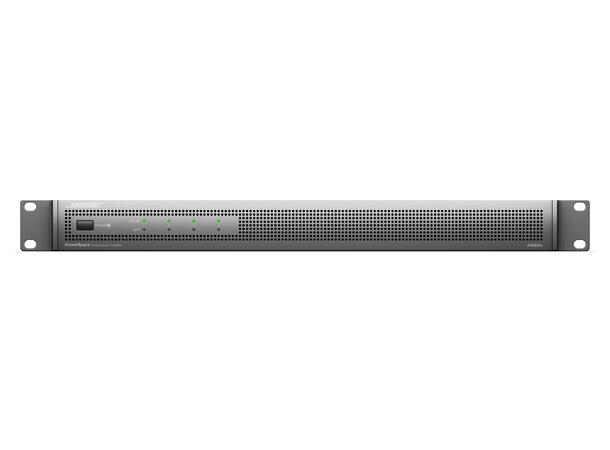

Controls, Front Panel
(1) power LED, (1) input signal LED, (1) output limit LED

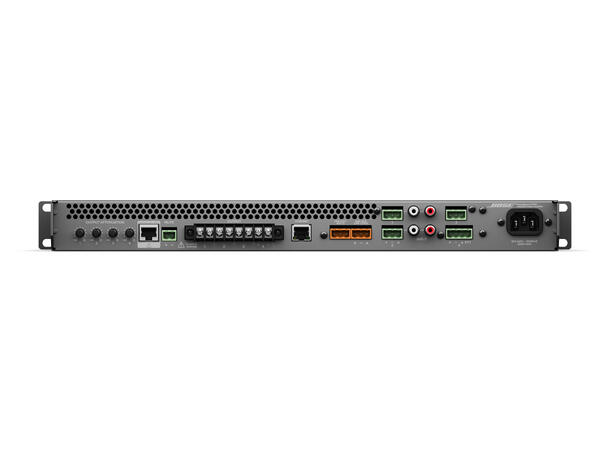

Controls, Rear Panel
RJ-45 remote input for ControlCenter CC-1, CC-2 and CC-3 zone controllers, mute, output attenuators

LED Status Indicators
(1) power/status LED, (4) input signal LEDs, (4) output limit LEDs

INTEGRATED DSP

Delay
2 s

Equalization
Input: 3-band EQ, paging / Loudspeaker: 9-band PEQ (±20 dB), notch, shelving, high-pass, low-pass, low-frequency compensation / Area : 7-band PEQ (±20 dB), notch, shelving, high-pass, low-pass

Crossover Types
Butterworth 6 (±6 dB/octave), Butterworth 12 (±12 dB/octave), Butterworth 18 (±18 dB/octave), Butterworth 24 (±24 dB/octave)

A/D and D/A Converters
48 kHz / 24-bit

Audio Latency
< 1 ms, analog input to analog loudspeaker output

DSP-Enabled
Yes

Limiters
Peak voltage, RMS voltage

Presets
Bose Professional loudspeaker presets

Processing Functions
Input EQ, loudspeaker EQ, peak voltage limiter, RMS voltage limiter, ControlCenter configuration, matrix mixer, mute/output polarity inversion
