Neat Bar Pro packs a stack of tech into a simple

and elegant device that is perfect for bringing

superior-quality audio and video to any space,

including your large meeting rooms.

* Supported in future software update
** Needs to be purchased from Zoom or Microsoft

Wakeup sensor (radar)
Depth sensor (time-of-flight VGA 60° FOV)
Orientation sensor (accelerometer)
Ambient light sensor
Temperature sensor
Humidity sensor
Air quality sensor
Camera LED
System LED
Tripod mount compatible (1/4-20 UNC threads)
Table stand, wall mount and screen mount

Audio

Speakerbox for maximal tonal range with minimal distortion
3 full-range speakers ready for directional and stereo sound
Woofers with two opposing drivers for vibration cancellation
4 tracking mics
16 microphones beamforming arrays
Hardware accelerated audio processing
Echo cancellation
Noise suppression
Automatic gain control
Dereverberation

Video

Pro 100 MP camera system with wide and tele cameras
Wide camera: 50 MP, ƒ/2.8 aperture, 113° horizontal field of view
Tele camera: 50 MP, ƒ/1.8 aperture, 70° horizontal field of view
Hybrid zoom up to 16x
Hardware accelerated video encode and decode
Distortion correction
Noise reduction
Chromatic aberration correction
Automatic white balance and color correction
People video resolution: Up to 1080p / 30
Content video resolution: 720p / 60, 1080p / 30

Security

Secure boot
Security lock slot
Communications are established with 256-bit TLS encryption
Shared content is encrypted with AES-256 encryption
The Zoom Rooms app is secured with App Lock Code
As a native Zoom device Neat Bar Pro supports all Zoom signaling and media encryption protocols.
Read more about Zoom security.

Electrical and environmental requirements

Built-in power supply
100-240V ~ 50/60Hz 1.2A
Ambient operating temperature: 32° to 95° F (0° to 35° C)
Storage temperature: -4° to 140° F (-20° to 60° C)
Relative humidity: 10% to 90%

Networking & ports

WiFi
AC power (internal power supply)
Ethernet
USB-C for input when connected to a touch screen
3x HDMI out for external screens
HDMI-in for screen sharing
Auxiliary port for 3rd party audio extensions (RJ45) (*)

Size & weight

Width: 35.04 inches (890 mm)
Height: 3.15 inches (80 mm)
Depth: 3.15 inches (80 mm)
Weight: 6.83 pounds (3.1 kg)

What's in the box

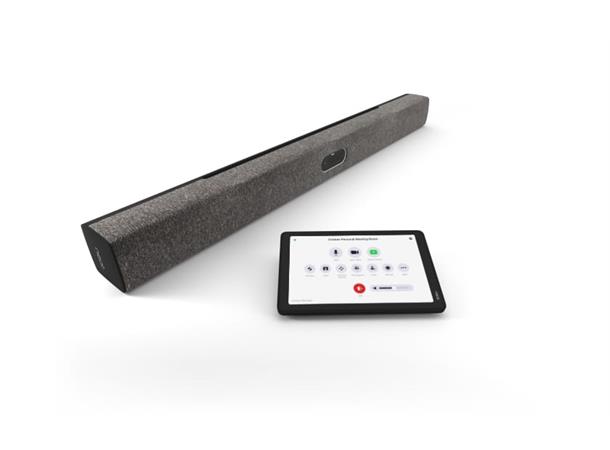

Neat Bar Pro
HDMI cable (6.5 feet / 2 meters)
Ethernet cable (9.8 feet / 3 meters)
Power cable (9.8 feet / 3 meters)
Mount adapter, wall mount, screen mount and table stand

4 × M8 screw (0.94 in / 24 mm) for VESA mount
4 × M6 screw (0.94 in / 24 mm) for VESA mount
2 × spacer (to secure parallel TV mount)
1 × 5 mm hex key for the screen mount
1 × 2 mm hex key for the mount adapter

2 additional screw bags for dual or triple screen setup

• 2 ×

  • 4 × M8 screw (0.94 in / 24 mm) for VESA mount
  • 4 × M6 screw (0.94 in / 24 mm) for VESA mount
  • 4 × spacer (to secure alignment of all screens)

What you need

Subscription service with Zoom or Microsoft Teams (**)
Display (16:9 aspect ratio) with 1080p resolution or better
Internet connection

Box weight and dimensions

Neat Bar Pro with Neat Pad
26 pounds / 11.8 kg
