Creativity across the Board.

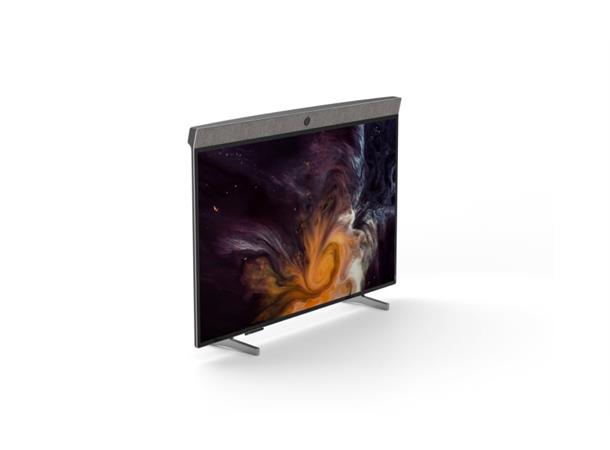

Neat Board is the complete meeting room package in a simple and elegant all-in-one device. With its immersive 65-inch multi-touch screen, powerful audio system and versatile wide-angle camera, Neat Board gives you a collaboration experience beyond video meetings and wireless content sharing by enabling annotations and whiteboarding.
Simple
set-up.

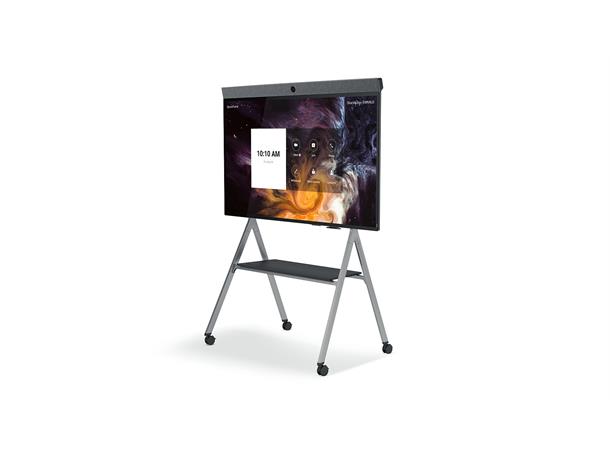

Designed to provide everything you need in your meeting room today, Neat Board gives you the freedom and flexibility to collaborate however you want in the future. It's also easy to set up, having just one cable and a choice of either a floor stand with optional wheels, wall mount or table stand.
Just works.
Neat Board responds to your presence and automatically wakes up the moment you walk into the room. With just one tap, you can wirelessly share your screen, start a meeting or mark something up. The large multi-touch screen is perfect for taking notes, organizing thoughts and providing quick visual feedback, whether people are right there in the room or on video.
Make your mark.

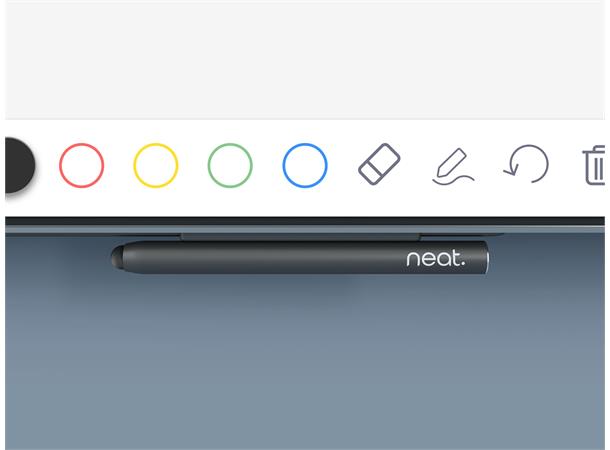

Neat Board comes with a pair of Neat Markers, so two people can sketch or mark something up at the same time. Neat Marker delivers just the right amount of friction for whiteboarding and markup. It attaches magnetically to the Neat Marker holder, which also serves as cable management. Neat Marker is passive, so you don't need to set it up or charge it.
No idea left behind.
With our partners at Zoom, we’re enhancing the whiteboard experience with simple powerful tools that match the way you work. The infinite canvas will provide your team with the space you need to brainstorm, organize and restructure - even when physically apart. Share the output and continue where you left off in the next meeting.
It’s the total package
Neat Board transforms your meeting room experience by packing powerful technology and all the capabilities of Zoom or Microsoft Teams into an elegant all-in-one design. Just plug in the power cable and you’re ready to go.
A brighter board.
The immersive 4K 65" LED screen with wide-angle viewing and stunning brightness enables everyone in the room to read presentation details and see facial expressions.
And with Neat Board's integrated capacitive multi-touch display, brainstorming and quick visual feedback are just a tap away.
No need for a dedicated PC.
It has a built-in advanced custom-made chip for accelerated audio and video processing.
Responds to your presence.
Acoustic ultrasonic sensors detect people’s presence, saving power when the room’s empty.
One-click wireless sharing and proximity join that works every time.
Integrated Blueooth support and a wide-angle ultrasonic tweeter that fills all corners of the room ensure reliable device pairing in Zoom and Microsoft Teams.
Brilliantly captures the entire room and zooms in on people.
A custom designed highly dynamic wide-angle 4k camera with ambient light sensor smartly adapts to changing lighting conditions.
Enhances your voice, suppresses noise.
Neat Board’s end-fire mic array uses advanced differential beam-forming with five microphones angled for optimal audio pick up within camera view.
Hardware-based Neat Audio Processing eliminates "double talk" issues (when a person's voice becomes garbled or muted by others talking over them or by any background noise), making conversations more natural.
Superior sound, clear audio and stable image.
A carefully designed speaker box maximizes tonal range while minimizing distortion. While opposing drivers cancel vibration, and a dedicated tweeter enables high definition sound.
Fanless design allows air to flow freely through the device, eliminating the need for noisy fan-based cooling.
Safer rooms.
You can monitor in real-time air quality throughout your spaces with built-in sensors that track temperature, humidity, CO2 and VOC (*).
Neat Board is the complete Zoom Rooms or Microsoft Teams package in a simple and elegant all-in-one device.
* Feature not yet supported by Microsoft Teams
** Needs to be purchased from Zoom or Microsoft
65-inch capacitive multi-touch LED screen
Ultra HD 4K (3840 x 2160 screen resolution)
16:9 aspect ratio
Anti-glare and anti-fingerprint coating
Camera LED
System LED
Ambient light sensor
Sensors for temperature, humidity, CO2 and VOC (*)
2 × Neat Marker (passive)
Table stand
Floor stand (optional)
Wall mount (optional)
Neat Pad controller (optional)
Neat Pad scheduling display (optional)
Zoom Rooms for Touch software
Audio
Speaker box for maximum tonal range with minimal distortion
Opposing drivers for vibration cancellation
Dedicated wide-angle ultrasonic tweeter
3 sensor mics
5 microphones angled in an end-fire array
Hardware-accelerated audio processing (NAP)
Beamforming
Echo cancellation
Noise suppression
Automatic gain control
Dereverberation
Video
4x digital zoom
Fixed lens, infinite focus
F-value: 2.8
4056*3040 (12 MP) capture resolution
120 degrees horizontal field of view
Automatic people framing
Hardware accelerated video encode and decode
Distortion correction
Noise reduction
Chromatic aberration correction
Automatic white balance and color correction
Electrical and environmental requirements
Built-in power supply
100-240V ~ 50/60Hz 2.5A
Ambient operating temperature: 32° to 95° F (0° - 35° C)
Storage temperature: -4° to 140° F (-20° to 60° C)
Relative humidity: 10% to 90%
Networking & ports
WiFi
AC Power (internal power supply)
Ethernet
USB-C (reserved for future use)
HDMI-in for sharing in Zoom or Microsoft Teams (1080p)
HDMI-in (4K)
Size & weight
Table stand
Width: 58.1 inches (1476 mm)
Height: 39.2 inches (996 mm)
Depth: 13.8 inches (350 mm)
Weight: 102.6 pounds (46.5 kg)
Wall mount (optional)
Width: 58.1 inches (1476 mm)
Height: 36.7 inches (931 mm)
Depth: 4 inches (104 mm)
Weight: 111.6 pounds (50.6 kg)
Floor stand (optional)
Width: 58.1 inches (1476 mm)
Height: 71.3 inches (1812 mm)
Depth: 29.3 inches (744 mm)
Weight: 124.6 pounds (56.5 kg)
What's in the box
Neat Board
Ethernet cable (16.4 feet / 5 meters)
Power cord (9.8 feet / 3 meters)
2 × Neat Marker
Neat Marker holder that doubles as cable management
Table stand
Optional wall mount
Optional floor stand
What you need:
Licence for Zoom Rooms or Microsoft Teams (**)
Internet connection
Box weights and dimensions
Neat Board with table stand
125.9 pounds / 57.1 kg
Wall mount
18.1 pounds / 8.2 kg
Floor stand
44.8 pounds / 20.3 kg
Wall mount
18.1 pounds / 8.2 kg
Floor stand
44.8 pounds / 20.3 kg
