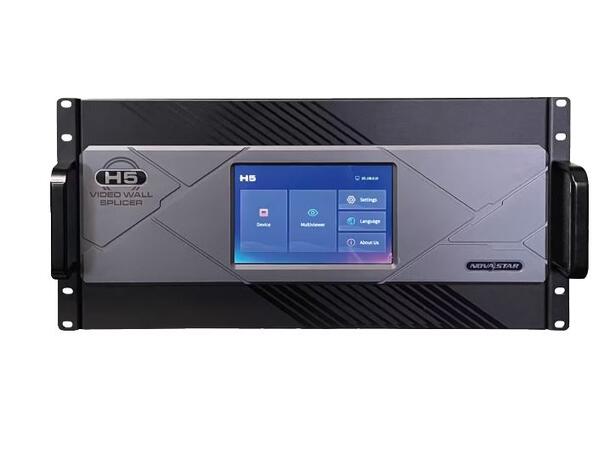

Novastar H5 Master case

Varenr: S07030006
Novastar H5 Master case
eks. mva

For a complete product, it's also necessary to order at least one input card and one output card.



NovaStar H5 is a of video wall splicer, featuring excellent image quality and designed especially for fine-pitch LED screens. The H5 can work as splicing processors that integrate both video processing and video control capabilities, or work as pure splicing processors. The whole unit adopts a modular and plug-in design, and allows for flexible configuration and hot swapping of input and output cards. Thanks to excellent features and stable performance, the H5 can be widely used in a variety of applications, such as energy and power, judicial departments and prisons, military command, water conservancy and hydrology, meteorologic earthquake prediction, enterprise management, metallurgy of steel, banking and finance, national defense, public security traffic management, exhibitions and presentations, production scheduling, radio and television, educational and scientific research, as well as stage rental applications.

Based on the powerful hardware FPGA system architecture, with a modular and plug-in design, the H5 features a stable and highly efficient pure hardware architecture, and provides a variety of connector modules for flexible and personalized configuration, allowing for easy maintenance and low failure rate. The H5 provides the industry-standard input connectors, including HDMI, DVI, DP, VGA, CVBS, SDI and IP, and supports 10-bit video source input and processing, as well as 4K high-definition inputs and outputs. The H5 also provides three kinds of LED 4K sending cards, allowing for the backup between the OPT ports and Ethernet ports as well as ultra-long distance transmission. Moreover, the H5 supports multi-screen and multi-layer management, input and output EDID management and monitoring, input source renaming, BKG and OSD settings and more, bringing you a rich image construction experience.

In addition, the H5 adopts the B/S architecture and supports cross-platform, cross-system access and control without the need to install an application program. On a Windows, Mac, iOS, Android or Linux platform, online collaboration of multiple users is supported and the Web page response speed is very fast, which greatly improves on-site setup efficiency. What’s more, the H5 supports online firmware update, allowing for easy hardware update on a PC.

Key Features

  • Modular Design and Sending Cards:

    • Three types of LED 4K sending cards with varying pixel capacities and features.
    • Multi-capacity configuration on a single card slot.
    • Simple screen configuration using a single card and connector.
    • Online status monitoring of all input and output cards.
    • Hot-swappable input and output cards.
    • H_2xRJ45 IP input card supporting up to 512 IP camera inputs.
    • Auto decryption of HDCP-encrypted sources.
    • Support for decimal frame rates, HDR10, and HLG processing.
  • Multi-screen Management:

    • Individual output resolution settings for each screen.
    • Output mosaic with frame synchronization technology.
    • Support for irregular screen configurations.
    • Input source grouping management and eye saver mode for reduced eye strain.
    • LCD bezel compensation for diverse display possibilities.
  • Flexible Configuration:

    • Multi-layer display supporting various layer types.
    • High-definition scrolling text customization and presets.
    • OSD settings and adjustable transparency.
    • Channel logo management and input source cropping.
  • Advanced Features:

    • HDR and 10-bit video processing for enhanced image quality.
    • XR scenario control and 3D function with NovaStar’s 3D emitter.
    • Low latency of 1 frame from input source to receiving card.
    • Web-page control for real-time response and collaboration.
  • Status Monitoring and Reliability:

    • Self-test for fault detection and automatic monitoring with alarms.
    • Optional redundant power supply for higher system reliability.
    • Backup design between devices and LED 4K sending cards.

Certifications: CCC, CE, FCC, IC, KC, RCM, UKCA, UL, CB, NOM, CMIM
