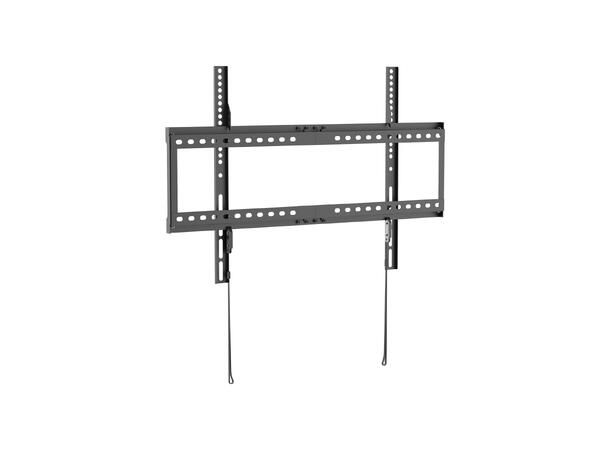

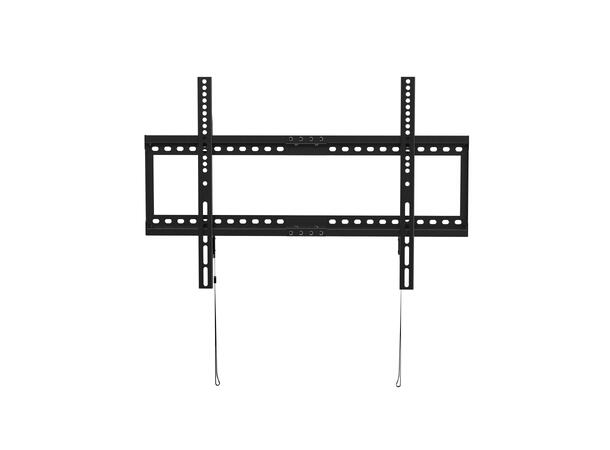

FIXED TV WALL MOUNT
For Most 37"- 80" Flat Panel TVsDESCRIPTION

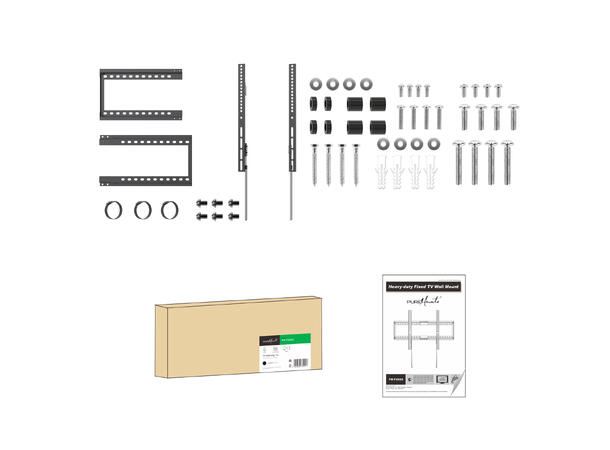

The PM-FIX-075M TV wall mount includes popular accessories needed to install and mount most 37’’-80’’ curved/flat panel TVs weighing up to 75kg/165lbs.Spring locks with release straps allow users to lock or release TV in a snap. Best of all, packaging is optimized for online sellers that desired the lowest shipping and storage costs. It features an open design which maximizes airflow to equipment and provides easy access to the back of components.
SPECIFICATIONS
Product Category: Fixed TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet,Wall Plate THK=0.059" cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black

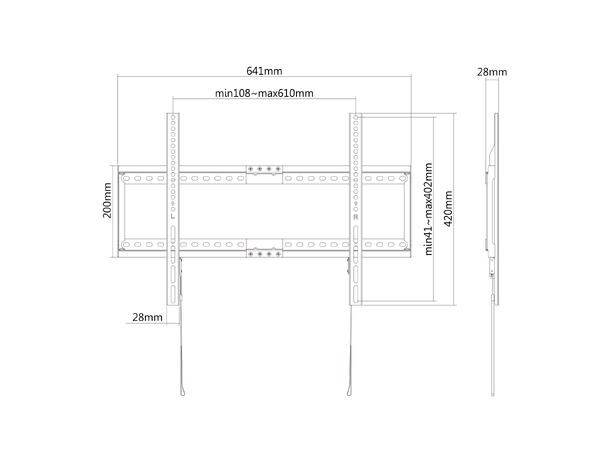

Dimensions: 37x641x420mm (1.5"x25.2"x16.5")
Fit Screen Size: 37"-80"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA & Universal

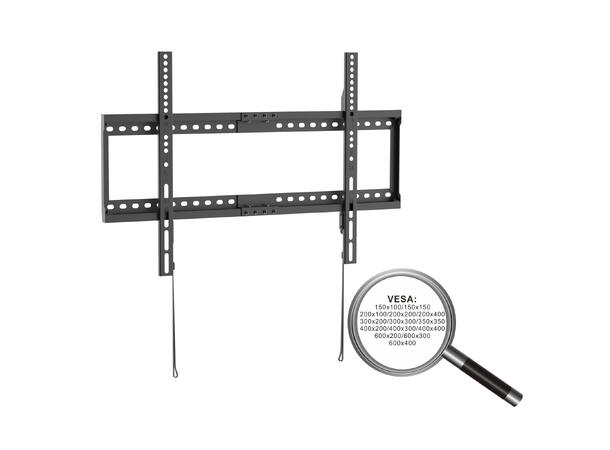

VESA Compatible: 150x100,150x150,200x100,200x200,300x200,200x400,300x300,350x350,400x200,400x300,400x400,600x200,600x300,600x400
Max. VESA: 600x400
Weight Capacity: 75kg (165lbs)
Strength Tested: 3 Times Approved
Profile: 28mm (1.1")
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
